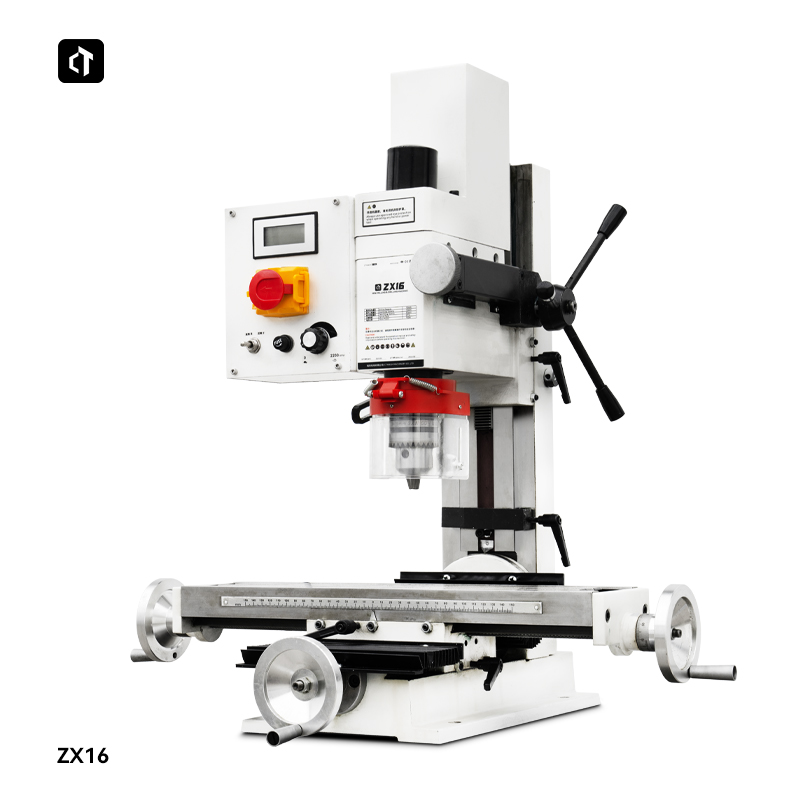

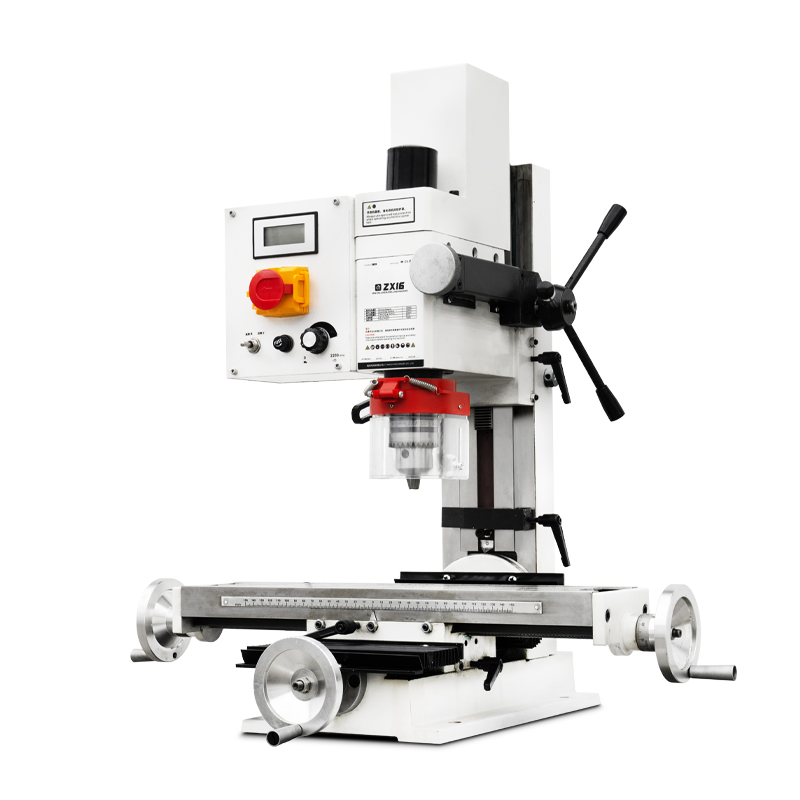

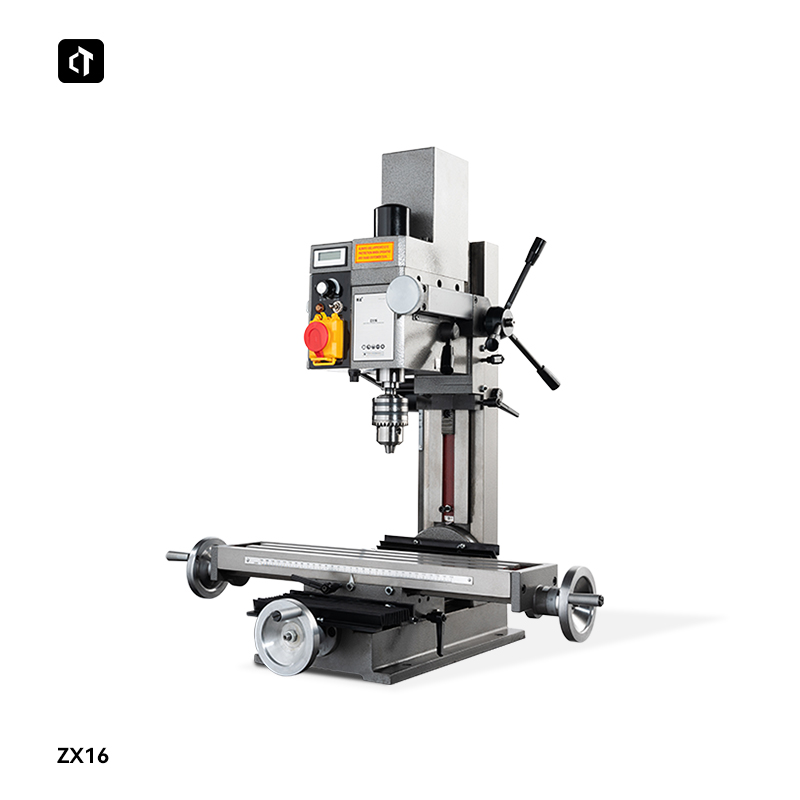

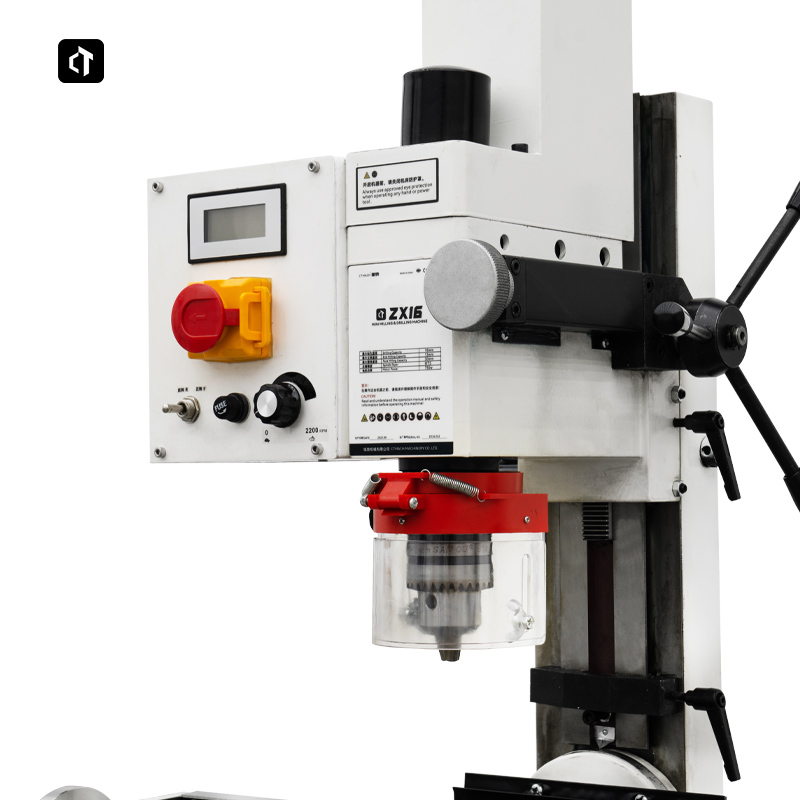

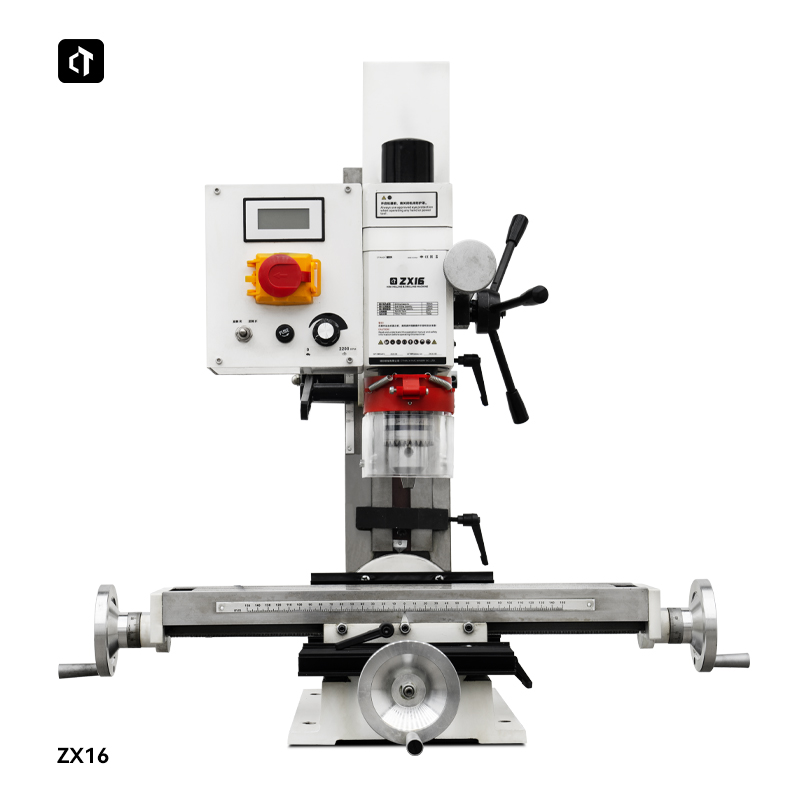

ZX16- 4" x 18" Mini Milling Machine

The combination of features on the ZX16 4" x 18" Mill/Drill makes quick work of whatever job is thrown at it.

This powerhouse comes equipped with a high-torque 600W motor, variable-speed controls, digital readout display, and fine downfeed control.

The head can be adjusted up and down the column and tilted 45° left or right relative to the table.

The high/low quick-change gearbox has variable speeds. The low range covers 50–1100 RPM, while the high range covers 120–2500 RPM.

The 4" x 18" table provides ample space for sizable projects and larger vises.

Model :
ZX16
Drilling Capacity (steel / lron) :
13mm
Face milling capacity :
30mm
End milling capacity :
16mm
Motor :
600w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

ZX16 is a small home drilling and milling machine, covering a small area, wide application.

High and low speed stepless speed regulation, high speed 50~1100rpm, low speed 120~2500rpm.

Headstock limit lift feed, used for drilling, deep milling and face milling and other functions.

Schools, science and innovation centers and research units teaching demonstration use, suitable for home DIY, model parts, clock parts processing.

Model	ZX13	ZX16
Drilling Capacity	13mm
End Milling Capacity	16mm
Face Milling Capacity	30mm
Table travel (X-, Y-Axis)	220，100mm	300，130mm
Table size	400x100mm	480x110mm
Vertical head travel	80
Spindle Speeds（Variable）	50~2500RPM
Spindle taper	MT3
Motor Power	350w	600w
Overall dimensions	51x48.5x74cm	55x55x73.5cm
N.W.	50Kg	62Kg
