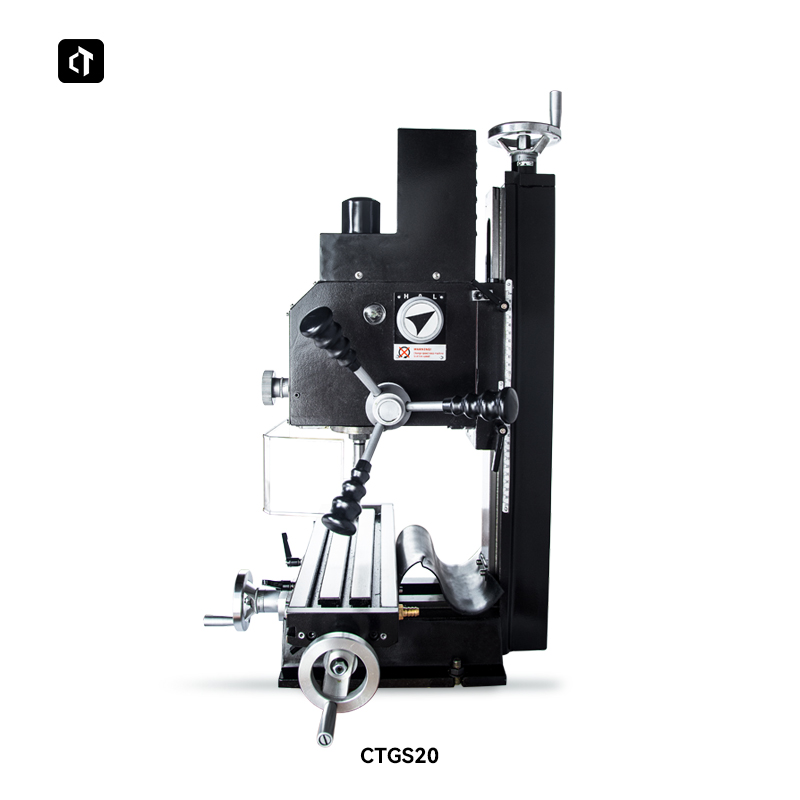

CTGS20 - 5" x 16" Mill/Drill

Drilling/Milling Machine for Metal Working

CTGS20 - 5" x 16" Mill/Drill

Household miniature non-industrial drilling and milling machine stepless speed gear transmission 3000rpm high speed small size high precision

Model :
CTGS20
Drilling Capacity (steel / lron) :
20mm
Face milling capacity :
52mm
End milling capacity :
16mm
Motor :
600w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1. This machine tool is suitable for individual enthusiasts, scientific research units, DIY studios and other places.

2. Use imported SKF bearings to improve service life and accuracy.

3. Stepless speed regulation, gear transmission, main shaft speed 100~3000rpm.

4. The three axes adopt dovetail guide rails with adjustable taper inserts, which are wear-resistant, can be used for heavy-load surface contact, and have good rigidity.

5. CE standard power-off protective cover, the power will be automatically cut off when the protective cover is opened, which is safe and reliable.

Model	CTGS20
Drilling Capacity (lron)	20mm
Face Milling Capacity	52mm
End Milling Capacity	16mm
Table size	400x120mm
T-slots size	10mm x3
Table travel (X-, Y-Axis)	230，145mm
Head travel (Z-Axis)	200mm
Spindle taper	MT2
Spindle stroke	50mm
Head tilt	±45°
Stepless speeds（Variable）	100~3000rpm
Motor Power	600W
N.W.	75KG
Overall dimensions	480x440x840mm
