18X - 5" x 20" 750W Mill/Drill

The 18X with DRO is a belt drive version of our existing popular small milling machine.

The 18X belt drive system offers exceptionally quiet operation and the mill has a brushless motor.

this is compact size, has excellent accuracy levels and is very well engineered throughout.

Model :
18X
Drilling Capacity (steel / lron) :
20mm
Face milling capacity :
50mm
End milling capacity :
16mm
Motor :
750w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1. The whole machine weighs 65KG, occupies a small area, and is suitable for individual hobbyist studios.

2. Use imported SKF bearings to improve service life and accuracy.

3. 750W brushless motor, multi-belt drive, small vibration and smooth operation.

4. Stepless speed adjustment from 100 to 3000 rpm, convenient for processing different workpiece needs.

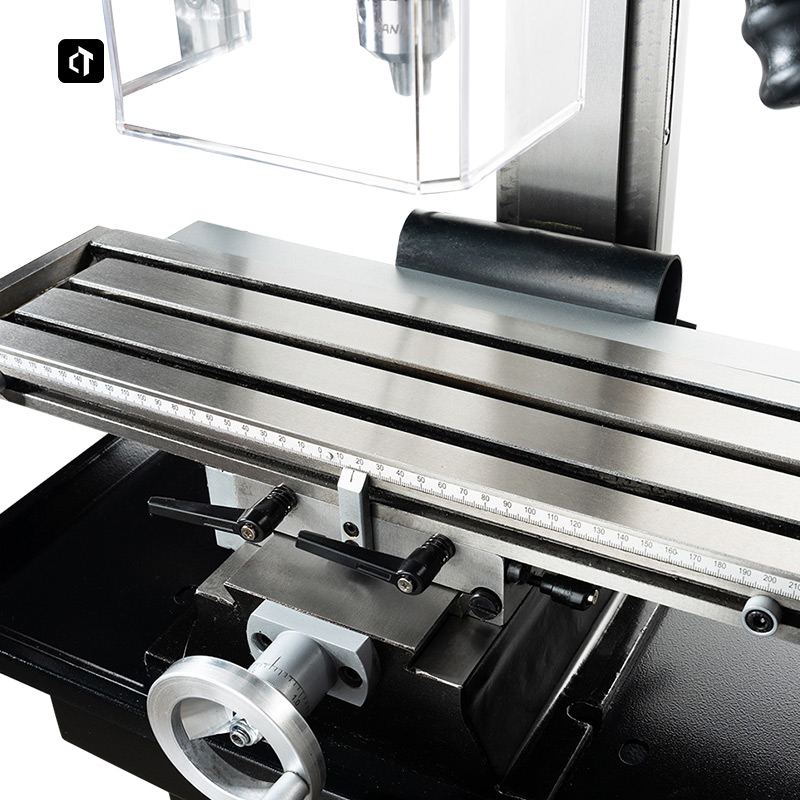

5. The three axes adopt dovetail guide rails with adjustable taper inserts, which are wear-resistant, can be used for heavy-duty surface contact, and have good rigidity.

6. CE standard power-off protective cover, the power will be automatically cut off when the protective cover is opened, which is safe and reliable.

7. This machine is equipped with a three-axis digital display ruler, and the feed stroke can be observed.

Model	18X
Drilling Capacity	20mm
Face Milling Capacity	50mm
End Milling Capacity	16mm
Table size	500x140mm
T-slot size	10mm
Table travel (X-, Y-Axis)	360，140mm
Head travel (Z-Axis)	210mm
Spindle taper	MT2
Spindle stroke	50mm
Max. Spindle to Column	170mm
Max. Spindle to Table	280mm
Spindle incline angle	±90°
Spindle speeds（Variable）	100~3000rpm
Motor Power	750W
N.W.	65KG
Overall dimensions	600x480x830mm
