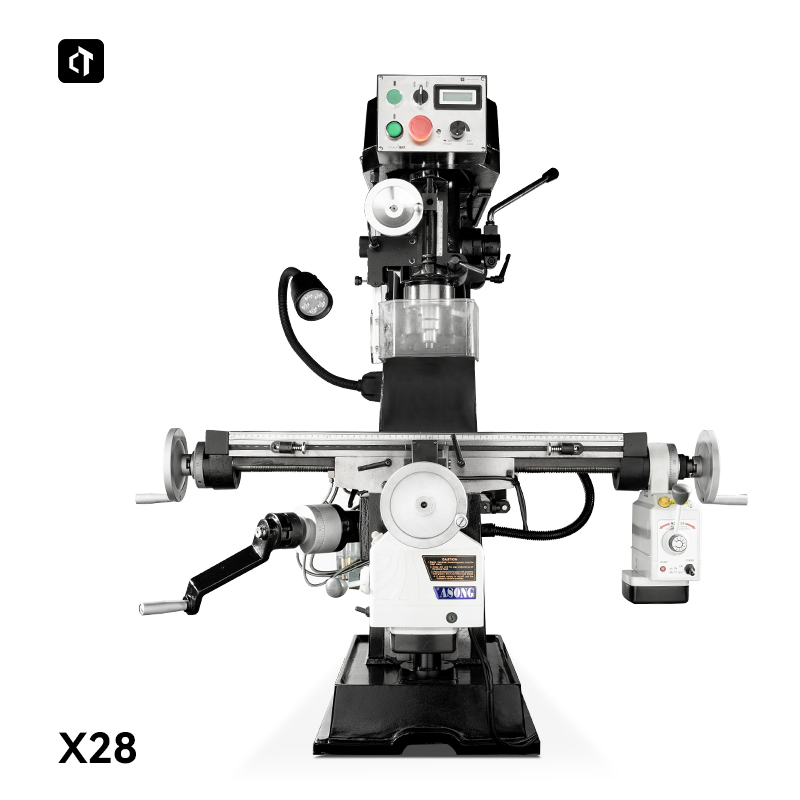

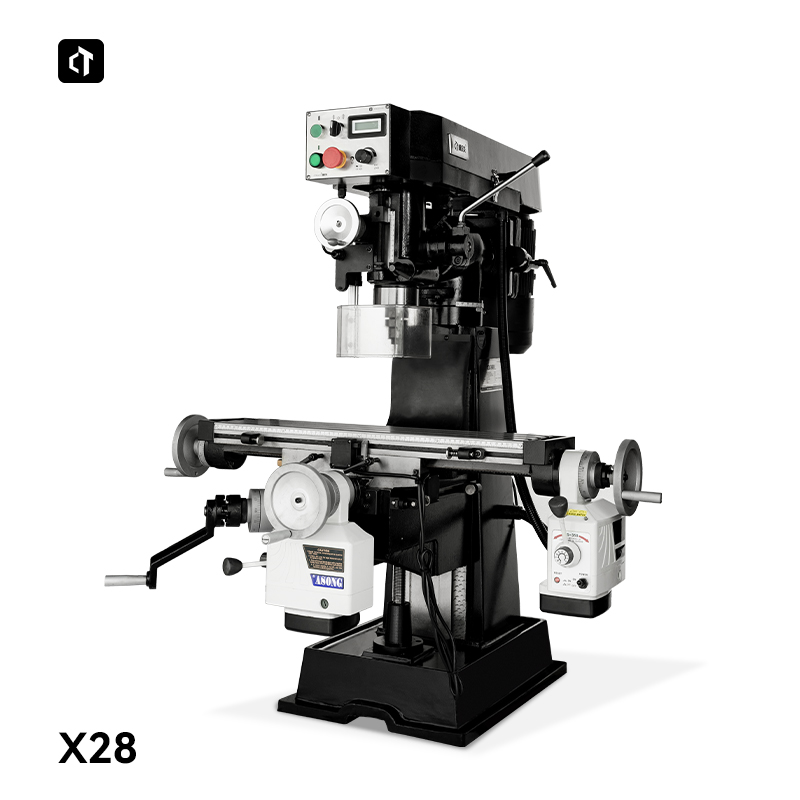

The X28 Vertical Mill is engineered for efficiency. From its user-friendly controls to its powerful motor, this machine helps you complete your projects faster and with greater ease. Designed for the home shop, school, or production environment, this machine offers a range of features that enhance your machining capabilities:
Effortless Speed Control: Achieve precise speeds from 200 to 2250 RPM with our user-friendly variable-speed control. The state-of-the-art frequency drive ensures smooth operation and robust torque, all while running on convenient single-phase power.
Versatility and Precision: The tilting head rotates 90° from left to right and expands your machining options. The fine downfeed, graduated scale, and table travelling on dovetail ways ensure accurate and controlled cuts.
Built for Productivity: The robust construction, including a turret-style column that rotates 360° around the column, ensures lasting performance and supports even the most demanding projects.
Enhanced Maintenance: One-shot lubrication simplifies maintenance and minimizes downtime, allowing you to focus on your work with greater efficiency.
Additional features include a reversing switch, fold-up safety handles, and adjustable travel stops on X and Y axes. Experience the difference with the X28 Vertical Mill.
Model :
X28Drilling Capacity (steel / lron) :
28mmFace milling capacity :
63mmEnd milling capacity :
16mmMotor :
1500wFeatures
The worktable is liftable and has high precision. The milling head can be tilted ±45° and rotated 360°, which is convenient for processing special workpieces and angles.
1500W three-phase high-power motor provides strong power, good performance, long life and high efficiency.
Variable frequency motor stepless speed change is very quiet, with manual oil pump, work light.
The X.Y axis of the worktable automatically moves the tool, and the CE standard power-off protection.
The three-axis adopts dovetail guide rail with adjustable taper inserts, which is wear-resistant, can be heavy-loaded with surface contact, and has good rigidity.
| Model | X28 |
| Drilling Capacity | 28 mm |
| End Milling Capacity | 16 mm |
| Face Milling Capacity | 63 mm |
| Spindle speeds （Variation） | 100~600 / 425~2500 rpm |
| Head tilt | ±45° |
| Turret or Column Swivel (Left/Right) | 360° |
| Table size / T-slot size | 660x156mm /14mmx3 |
| Table travel (X-, Y-Axis) | 350 ，160 mm |
| Knee Table Travel (Z-Axis) | 280 mm |
| Spindle Travel | 80 mm |
| Max. Spindle to Table | 310 mm |
| Distance From Spindle to Base | 165 mm |
| Spindle Taper | MT3 |
| Motor | 1500 w |
| Overall dimensions | 1075x1100x1200mm |
| N.W. | 230KG |
