X25 -7" x 27" Directly Drive metal Mill/Drill

High Efficiency Drilling Milling Machine

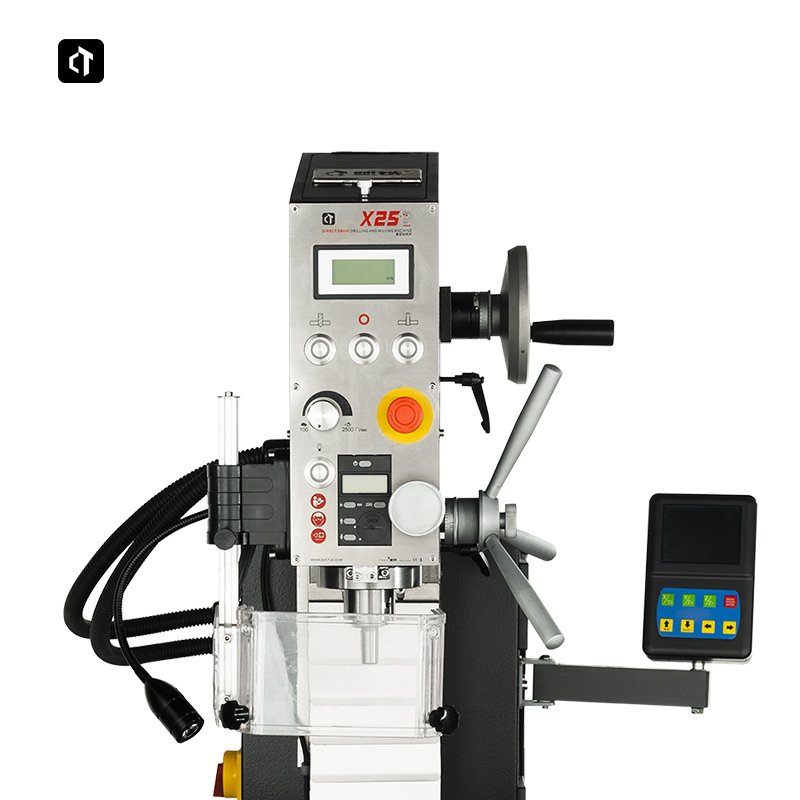

X25 -7" x 27" Directly Drive metal Mill/Drill

Medium capacity, small footprint machine with R8 spindle nose, allowing the use of widely used attachments. Use for precision machining, prototypes, maintenance, laboratories.

Model :
X25
Drilling Capacity (steel / lron) :
25mm
Face milling capacity :
63mm
End milling capacity :
16mm
Motor :
750w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

FEATURES:

1. This machine tool is suitable for individual enthusiasts, scientific research institutions, repair shops, DIY studios and other places.

2. Use imported SKF bearings to improve service life and accuracy.

3. 750W spindle direct drive motor, stepless speed regulation 100~2500rpm.

4. The three axes adopt dovetail guide rails with adjustable taper inserts, which are wear-resistant, can be used for heavy-load surface contact, and have good rigidity.

5. CE standard power-off protective cover, the power will be automatically cut off when the protective cover is opened, which is safe and reliable.

Model	X25
Drilling Capacity	25mm
Face Milling Capacity	63mm
End Milling Capacity	16mm
Table size	700x180mm
T-slots size	12mm
Table travel (X-, Y-Axis)	485，140mm
Spindle taper	R8
Spindle stroke	70mm
Max. Spindle to Column	160mm
Max. Spindle to Table	370mm
Head tilt	±90°
Spindle speeds（Variable）	100~2500rpm
Motor Power	750W
N.W.	123KG
Overall dimensions	960x580x780mm
