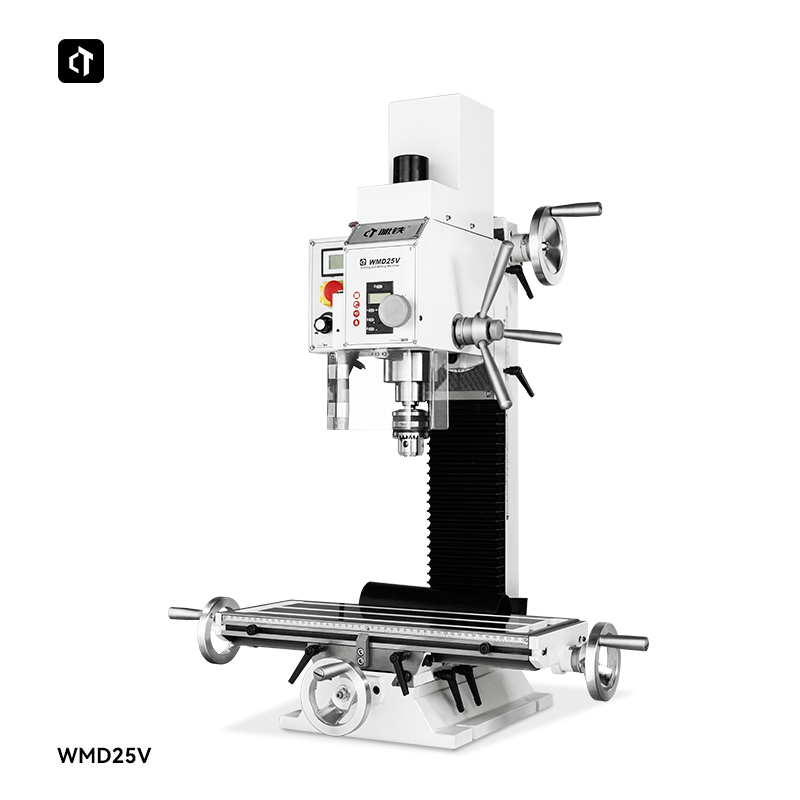

The WMD25V Mill Drill can be used as a dedicated, single-purpose machine in a professional shop. It can be easily operated by those just learning to mill in their home shop as well.
It is an excellent value and has some of the same features found on much larger mill drills. That’s why it is one of the best-selling mill drills in the country!
The variable-speed 1.1KW motor powers the mt3 spindle from 100–1125 RPM in low and 100–2250 RPM in high. Spindle RPM can be monitored on the convenient digital readout. A clear chip guard on the spindle keeps debris from flying at the operator.
Model :
WMD25VDrilling Capacity (steel / lron) :
25mmFace milling capacity :
63mmEnd milling capacity :
16mmMotor :
1100wFeatures
1. High precision tapered roller bearings.
2. 1.1KW DC brushless motor, spindle stepless speed regulation, 100~2250rpm.
3. Gates synchronous belt drive, low noise and high transmission efficiency.
4. The three axes adopt dovetail guide rails with adjustable taper inserts, which are wear-resistant, can be heavy-loaded, have surface contact and have good rigidity.
5. CE standard power-off guard, open the guard to automatically cut off the power, safe and reliable.
| Model | WMD25V | WMD25V Plus |
| Drilling Capacity | 25mm | |
| Face Milling Capacity | 63mm | |
| End Milling Capacity | 16mm | |
| Table size | 500*180mm | 700*180mm |
| T-slot size | 12mm * 3 | |
| Table travel (X-, Y-Axis) | 285, 160mm | 285, 160mm |
| Spindle stroke | 50mm | |
| Spindle taper | MT3 | R8 |
| Max. Spindle to Column | 160mm | |
| Max. Spindle to Table | 370mm | |
| Head tilt | ±90° | |
| Spindle Speeds（Variable） | 100~2250rpm | |
| Motor Power | 1100W | |
| Overall dimensions | 750*580*940mm | 950*580*940mm |
| N.W. | 105Kg | 115Kg |
