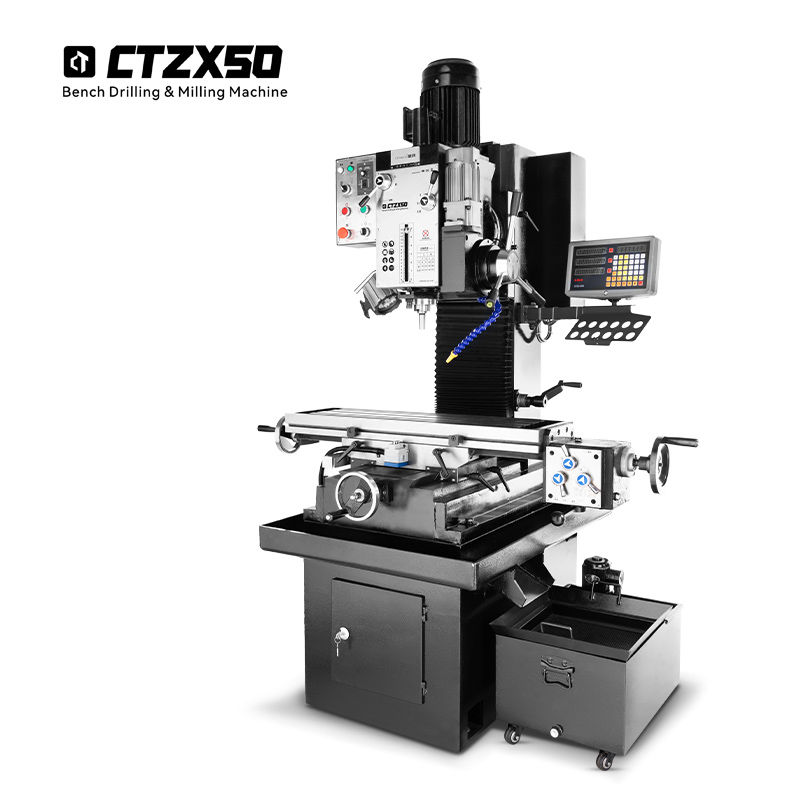

The CTMACH CTZX50 drilling and milling machine is a device that is ideally suited for small mechanical workshops and for educational purposes in technical schools. It can be used for unit and small lot production. Simple and solid structure guarantees long-lasting, maintenance-free operation without failure. The automatic table feeds greatly facilitate the processing of planes, they provide a uniform, aesthetic surface after milling.
Model :
CTZX50Drilling Capacity (steel / lron) :
50/40mmFace milling capacity :
100mmEnd milling capacity :
32mmTapping Capacity :
M30Motor :
2200wFeatures
It is suitable for drilling, reaming and hole machining on metal materials and other materials. It can also be used for face milling and end milling and tapping screw holes.
The spindle automatic feed is driven by an independent motor, the feed speed is controlled by stepless speed regulation, the tapping is automatically reversed, and the spindle handle is equipped with a positive and negative button.
900x260mm T-slot table, lateral automatic feed, improve milling accuracy.
All-metal gear drive, variable speed range is wide and suitable.
Table and column adopts dovetail guide rail with sufficient stiffness and stability.
Three-axis grating digital display, easy to observe or track the feed stroke, greatly improve the machining accuracy.
Independent cooling system, water pump motor 0.09KW, 25L/min.
Heavy floor tank, greater bearing capacity, drilling and milling operation is more stable.
| Model | CTZX50 |
| Drilling Capacity （Iron / Steel） | 50mm / 40mm |
| Tapping capacity （Steel） | M30 |
| Face mill capacity | 100mm |
| End Milling Capacity | 32mm |
| Spindle Taper | MT4 |
| Spindle Travel （Manual & motorized） | 150mm &120mm |
| Spindle speeds（Grade） | 45~1430 r/min (12) |
| Quill Auto. Feed（Variable） | 0~125 mm/min |
| Table size | 900×260 mm |
| T-slots | 3x14mm |
| Table travel（X x Y） | 400x270mm |
| Max. Distance Spindle to Table | 50~500mm |
| Max. Distance Spindle to Column | 325mm |
| Lateral maneuvering feed of table （Grade） | 24~720mm/min （8） |
| Head tilt | ±90° |
| Power of main motor | 2.2 KW 380V |
| Spindle feed motor | 0.14 KW |
| Table feed motor | 0.37 KW |
| Coolant motor | 0.09 KW 25 L/min |
| Overall dimensions | 1330×1450×2220 mm |
| N.W. | 800Kg |
