This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space.

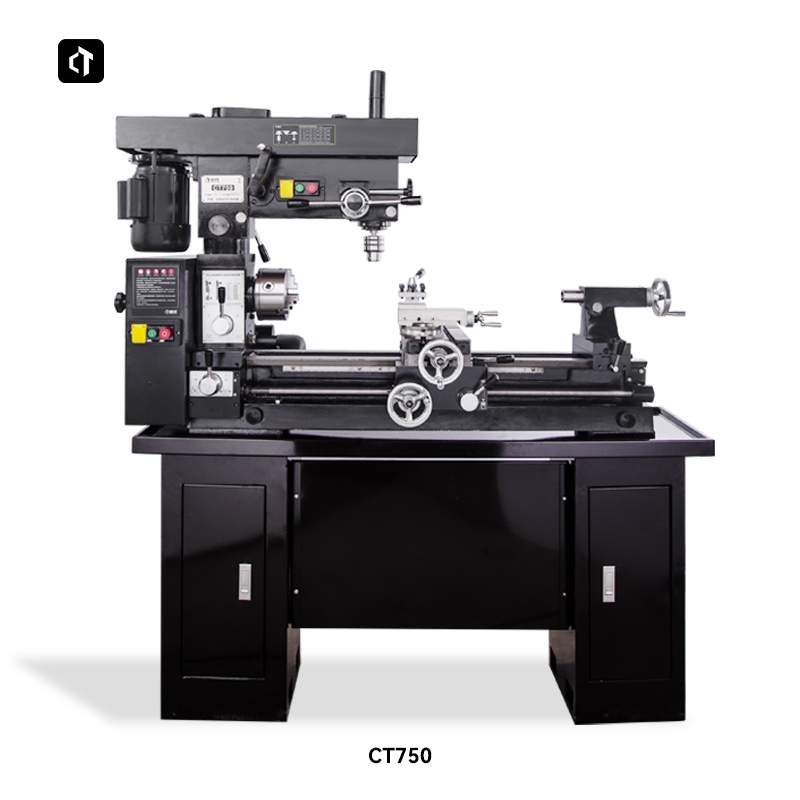

Model :
CT750Swing over bed :
340mmSwing over cross slide :
140mmDistance between centers :
750mmDrilling Capacity (steel / lron) :
20mmEnd milling capacity :
16mm1. Turning and milling machines use independent motors to providepower, and the spindle speed can be obtained through differentpositions of the V-belt to obtain a variety of speeds.
2. The middle slide plate is equipped with a T-shaped slot and canbe used as a milling machine workbench.
3. The middle slide plate adopts dovetail guide rail. The guide railgap can be adjusted according to the taper insert. lt iswear-resistant,surface contact and has good rigidity.
4. Push-pull clutch device can switch between turning or drillingand milling operations.
5. Follow CE and lSO production system standards, safe andreliable.
6. A multi-functional machine tool suitable for use in factories,maintenance workshops and laboratories.
TURNING
1.Spindle 6-level spindle speed, speed range 160~1360rpm.2. It can turn inch and metric threads and automatically feedvertically and horizontally.
MILLING
1.Milling 9-level spindle speed, speed range 315~2000 rpm.
2. The spindle can be fed in two ways: rapid feed and micro feed.
3. The milling head can be raised, lowered or rotated 360°.
| Model | CT520 | CT750 |
| Turning | ||
| Swing over bed | 300mm | |
| Swing over cross slide | 140mm | |
| Distance between Centres | 500mm | 750mm |
| Spindle taper | MT4 | |
| Spindle bore | 26mm | |
| Tailstock ram travel | 50mm | |
| Tailstock taper | MT3 | |
| Cross slide travel | 200mm | |
| Top slide travel | 80mm | |
| Metric threads (Grade) | 0.5~3mm(14) | |
| Inch threads(Grade) | 11~40 1/n”(20) | |
| Range of Corss Feed (Grade) | 0.05~0.5mm(20) | |
| Range of Longitudinal Feed (Grade) | 0.05~0.5mm(20) | |
| Spindle speeds (Grade) | 160~1600r/min(6) | |
| Motor power | 750W | |
| Drilling and milling | ||
| Drilling diameter | 20mm | |
| End Milling Capacity | 16mm | |
| Table size | 425*150mm | |
| T-slots size | 12mm | |
| Spindle taper | MT3 | |
| Spindle stroke | 80mm | |
| Max. Spindle to Column | 310mm | |
| Max. Spindle to Table | 240~320mm | |
| Spindle speeds(Grade) | 315~2000r/min(9) | |
| Head Rotation | 360° | |
| Vertical head travel | 80mm | |
| Motor power | 550W | |
| Other | ||
| N.W. | 240KG | 280KG |
| Overall dimensions | 1250*570*980mm | 1450*570*980mm |
