CT300 - 19-3/5" Combo Lathe/Mill

Drilling & milling three-in-one machine tool

CT300 - 19-3/5" Combo Lathe/Mill

This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space.

Model :
CT300
Swing over bed :
300mm
Swing over cross slide :
140mm
Distance between centers :
500mm
Drilling Capacity (steel / lron) :
20mm

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

1. Use imported SKF bearings to improve service life and accuracy.

2. 750W main motor, belt drive.

3. The middle slide plate is equipped with a T-shaped slot to hold the workpiece and can be used as a milling machine workbench.

4. The middle slide plate adopts dovetail guide rail. The guide rail gap can be adjusted according to the taper insert. It is wear-resistant, surface contact and has good rigidity.

5. Push-pull clutch device can switch between turning or drilling and milling operations.

6. Follow CE and ISO production system standards, safe and reliable.

7. A multifunctional machine tool suitable for home use, maintenance workshops, and laboratories.

Turning

1. The spindle has 6 levels of rotational speed, ranging from 160 to 1600rpm.

2. It can turn inch and metric threads and automatically feed vertically and horizontally.

Milling

1. Milling with 12 levels of speed, speed range 125~1600rpm.

2. The spindle can be fed in two ways: rapid feed and micro feed.

3. The milling head can be raised, lowered or rotated 360°.

Model	CT300
Turning
Swing over bed	300mm
Swing over cross slide	140mm
Distance between Centres	500mm
Spindle taper	MT4
Spindle bore	26mm
Tailstock ram travel	50mm
Tailstock taper	MT3
Lateral stroke	200mm
Top slide travel	80mm
Metric threads （Grade）	0.5~3mm（14）
Inch threads（Grade）	11~40 T.P.I （20）
Range of Longitudinal Feed	0.036、0.072mm
Spindle speeds（Grade）	160~1600r/min（6）
Drilling and milling
Max. drilling diameter	20mm
Table size	200x150mm
T-slots size	12mm
Head travel	80mm
Spindle taper	MT3
Spindle travel	80mm
Max. Spindle to Column	175mm
Max. Spindle to Table	240～320mm
Spindle speeds（Grade）	125～1600r/min（12）
Head Rotation	360°
Other
Motor power	750W
N.W.	200KG
Overall dimensions	1160x580x900mm

Hot Tags : Small combined machine tools Small multifunctional machine tool Turning, drilling & milling three-in-one machine tool Home Metal Machine Tools Home desktop machine tools Desktop small metal machine tool

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

RELATED PRODUCTS

CT520 - 19-3/5" Combo Lathe/Mill

This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space.

CT3023 - 18" Gantry frame combined lathe

CT3023 multi-function machine tool is a multi-function composite machine tool, which has the functions of ordinary machine tools and drilling and milling machines, and can complete the processing of turning, drilling, milling, boring, tapping, turning thread (special order of inch thread). CT3023 multi-function machine can be widely used in machining and repair industry, mainly processing medium and small parts. It can also be used in schools, hospitals, scientific research units, factories and families to make teaching AIDS test devices and crafts.

CT300 - 19-3/5" Combo Lathe/Mill

This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space.

CT125 - 7" Combo Lathe/Mill

It is a very robust and precise small combined metalworking machine. It has an automatic feed and is an ideal machine for both threading and milling. The motor that powers both the milling machine and the lathe has a power of 120 W and is single-phase. The machine comes equipped, in its standard version, with 2 counterpoints with fixed conical type joint, all the gears useful for making threads, the lathe chuck with 3 jaws and the milling machine chuck.

CT400 - 15-3/4" Combo Lathe/Mill

The CT400 is a precision metalworking lathe/mill. The lathe features a 16-1/2" swing, 19-3/16" between centers, and 6 speeds ranging from 160 to 1360 R.P.M. The lathe cuts inch and metric threads, features 9 longitudinal feeds, and comes with a 4" three-jaw scroll chuck and 9-1/2" faceplate. The compound rest features a built-in vise and the cross slide conveniently doubles as a mill table. Meanwhile, the milling portion of the machine features a swing of 12", 14 speeds ranging from 117 to 1300 RPM, and a vise with a 2-3/4" capacity. It sports an adjustable head, coarse and fine downfeed controls, and comes with a 1/2" drill chuck with arbor. With the CT400, you get a lot of machine in a small package with all the features you need for just about any job!

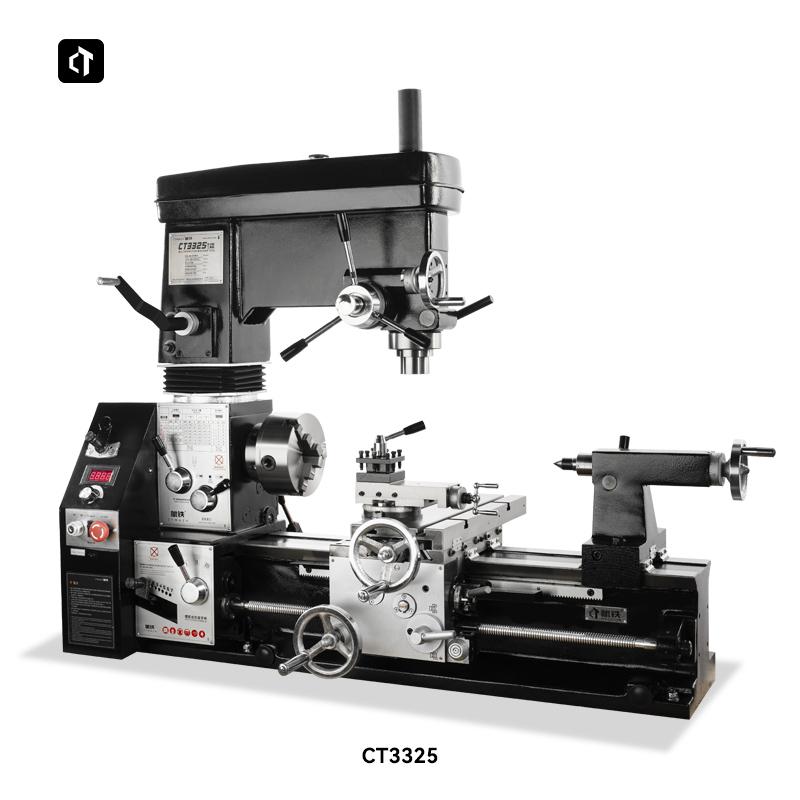

CT3325 - 24" Combo Lathe/Mill
