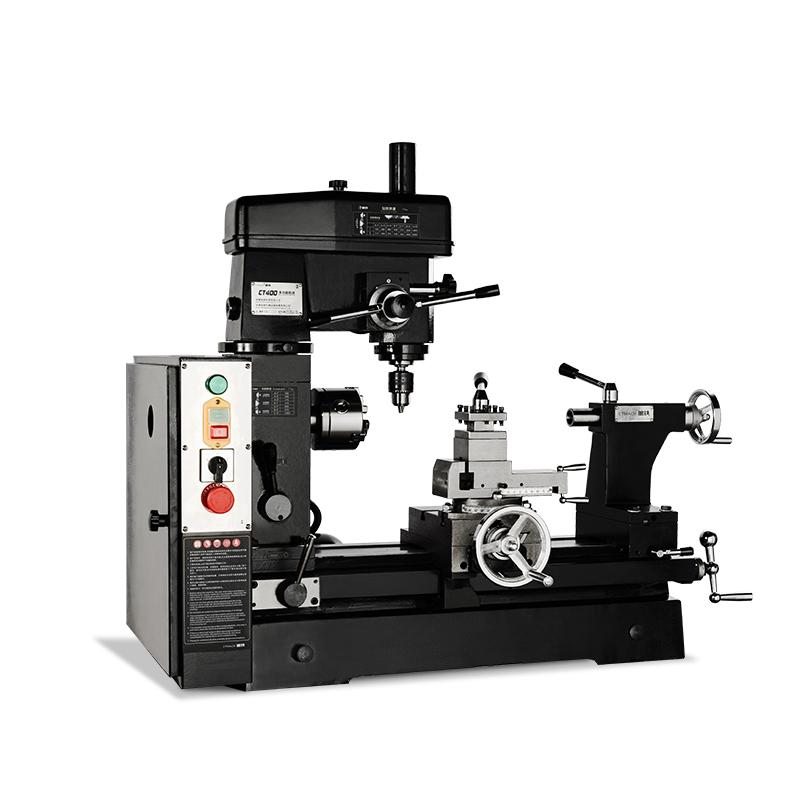

The CT400 is a precision metalworking lathe/mill. The lathe features a 16-1/2" swing, 19-3/16" between centers, and 6 speeds ranging from 160 to 1360 R.P.M.
The lathe cuts inch and metric threads, features 9 longitudinal feeds, and comes with a 4" three-jaw scroll chuck and 9-1/2" faceplate.
The compound rest features a built-in vise and the cross slide conveniently doubles as a mill table.
Meanwhile, the milling portion of the machine features a swing of 12", 14 speeds ranging from 117 to 1300 RPM, and a vise with a 2-3/4" capacity.
It sports an adjustable head, coarse and fine downfeed controls, and comes with a 1/2" drill chuck with arbor.
With the CT400, you get a lot of machine in a small package with all the features you need for just about any job!
Model :
CT400Swing over bed :
420mmDistance between centers :
400mmDrilling Capacity (steel / lron) :
15mmFace milling capacity :
20mmEnd milling capacity :
63mm1. 750W main motor, belt drive.

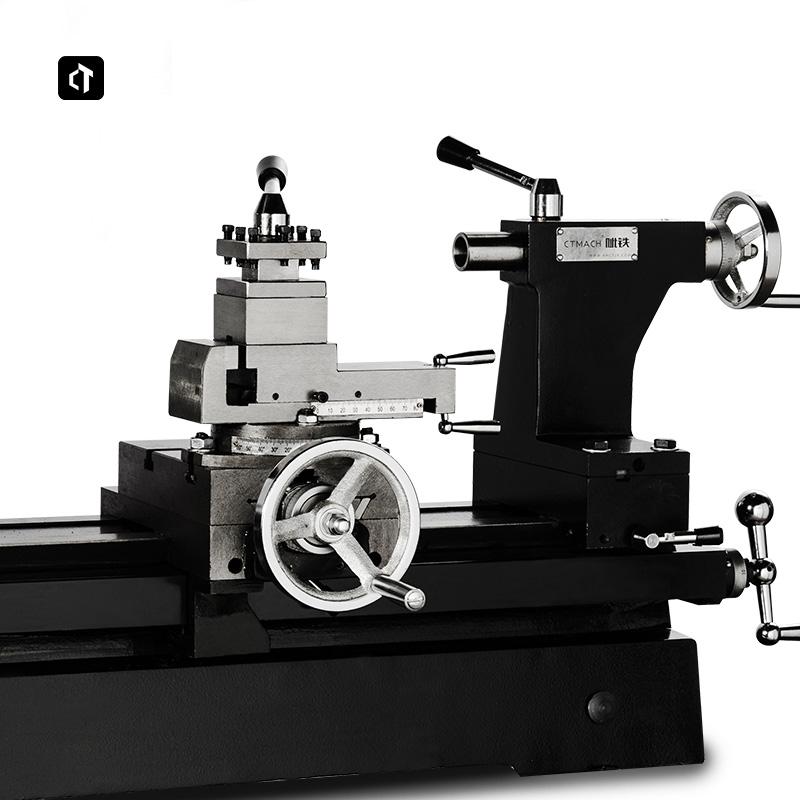

2. The middle slide plate is equipped with a T-shaped slot, and the tool holder slide has the function of clamping the workpiece and can be used as a milling machine workbench.
3. The middle slide plate adopts dovetail guide rail. The guide rail gap can be adjusted according to the taper insert. It is wear-resistant, surface contact and has good rigidity.
4. Push-pull clutch device can switch between turning or drilling and milling operations.
5. Follow CE and ISO production system standards, safe and reliable.
6. A multifunctional machine tool suitable for home use, maintenance workshops, and laboratories.
Turning
1. Spindle 6-level spindle speed, speed range 160~1360rpm.
2. It can turn inch and metric threads and automatically feed longitudinally.

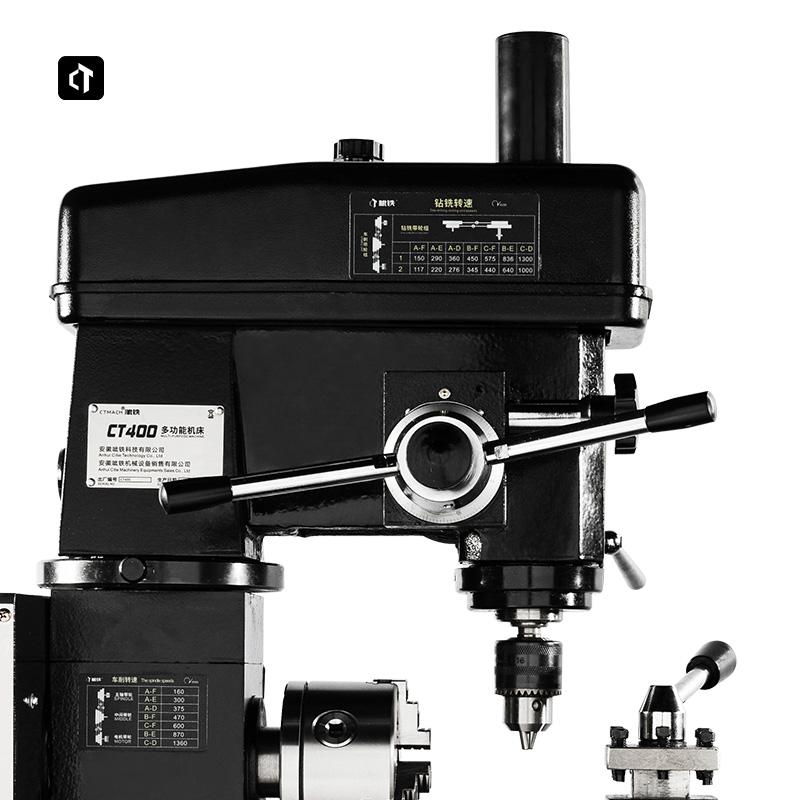

Milling
1. Milling 14-level spindle speed, speed range 117~1300rpm.
2. The spindle can be fed in two ways: rapid feed and micro feed.
3. The milling head can be raised, lowered or rotated 360°.
| Model | CT400 |
| Turning | |
| Swing over bed | 420mm |
| Distance between centers | 400mm |
| Large carriage travel | 380mm |
| Middle carriage travel | 120mm |
| Spindle bore | 20mm |
| Spindle taper | M.T.3 |
| Tailstock taper | M.T.3 |
| Tailstock ram travel | 70mm |
| Spindle speeds（Grade） | 160~1360rpm（7） |
| Metric threads （Grade） | 0.2~3mm（18） |
| Inch threads（Grade） | 8~120T.P.I（32） |
| Range of Longitudinal Feed （Grade） | 0.050~0.175mm/r（8）0.002"~0.0069"（8） |
| Drilling and milling | |
| Max. drilling diameter | 15mm |
| Max. face milling capacity | 20mm |
| Max. milling capacity | 63mm |
| Spindle taper | M.T.3 |
| Spindle travel | 85mm |
| Spindle speeds（Grade） | 117~1300rpm（14） |
| Head Rotation | 80mm |
| Table size | 200x150mm |
| Other | |
| Motor power | 0.75KW |
| N.W. | 180KG |
| Overall dimensions | 970×580×965mm |
