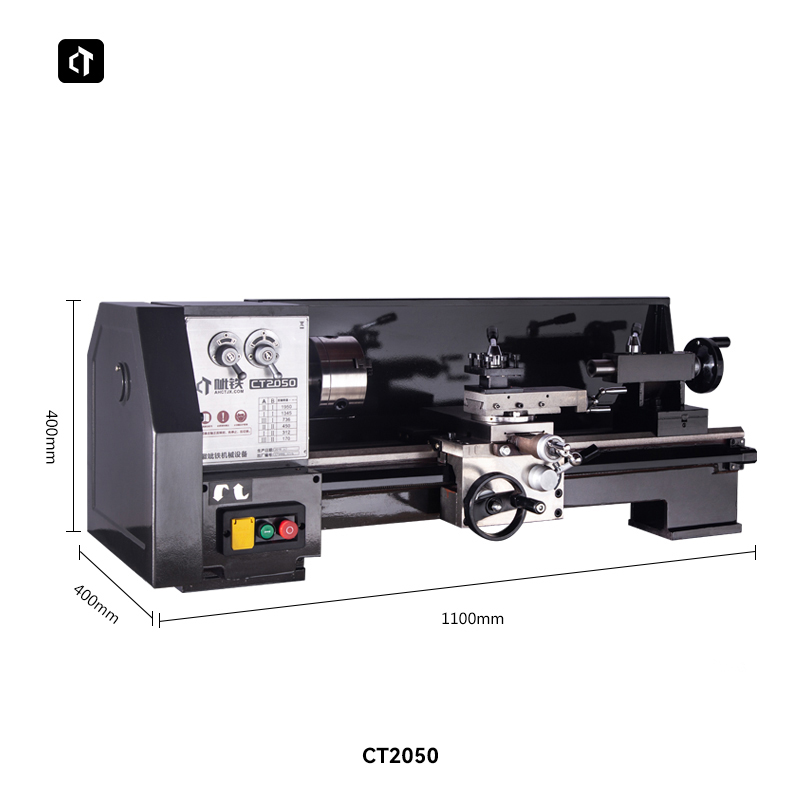

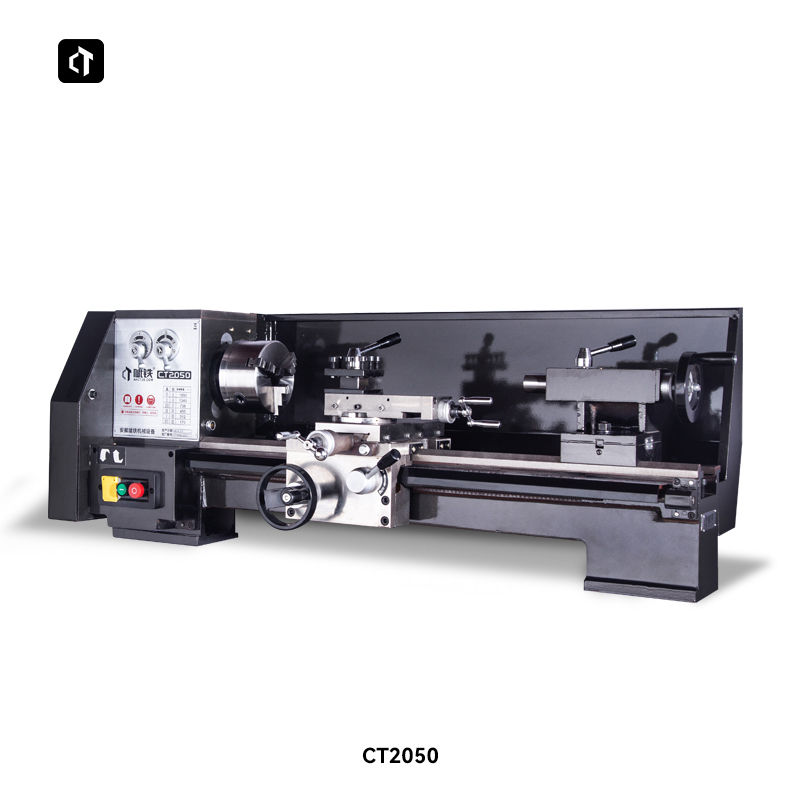

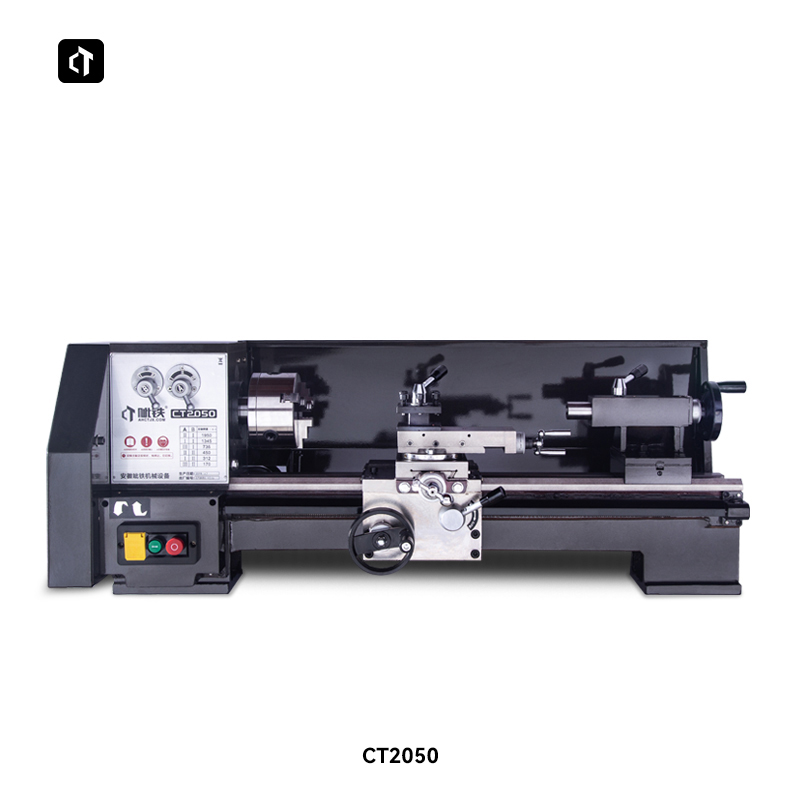

8" x 21" Household desktop small lathe-CT2050

8" x 21" Household desktop small lathe-CT2050

The CTMACH CT2050 table-top thread cutting lathe is designed for home (hobby) turning of metal or plastic workpieces with a surface shape of a body of revolution.

The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.

Model :
CT2050
Swing over bed :
220
Swing over cross slide :
128
Distance between centers :
550
Motor :
750W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1, 125kg machine, small size, strong rigidity, high precision, durable, easy to maintain.

2, all metal gear shift, 6 gear change.

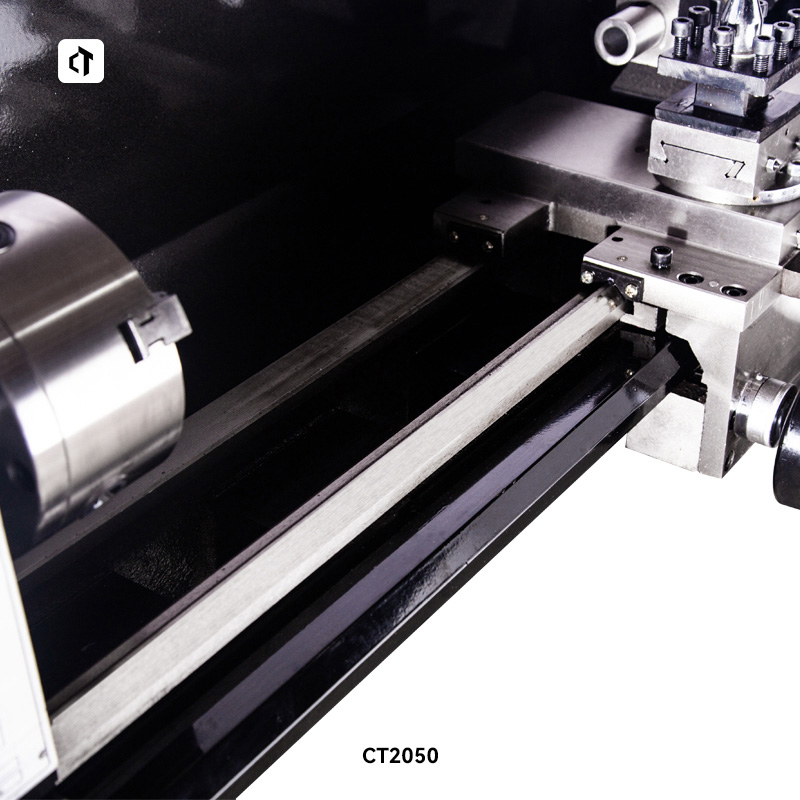

3, high-frequency quenching and high precision grinding of the bed, wear-resistant, high precision.

4, schools, science and innovation centers and research units teaching demonstration use, suitable for home DIY, model parts, clock parts processing.

Model	CT2050
Bed rotation diameter	220mm
Middle carriage rotation diameter	128mm
Two thimble distance	550mm
Spindle taper	MT3
Spindle through hole diameter	20mm
Tool carriage stroke	70mm
Middle carriage horizontal stroke	140mm
Spindle speed	170, 300, 500, 750, 1400, 2000RPM
Tailstock sleeve taper	MT2
Tailstock sleeve stroke	50mm
Longitudinal feed range	0.05 mm/r
Metric thread types and range	16 0.05~3.0mm
Inch thread types and range	17 48~8 T.P.I
Motor	750W
Overall dimensions	1080×550×490mm
Complete machine packaging	1220x575x540mm
Net weight	125KG
Gross weight	140KG
