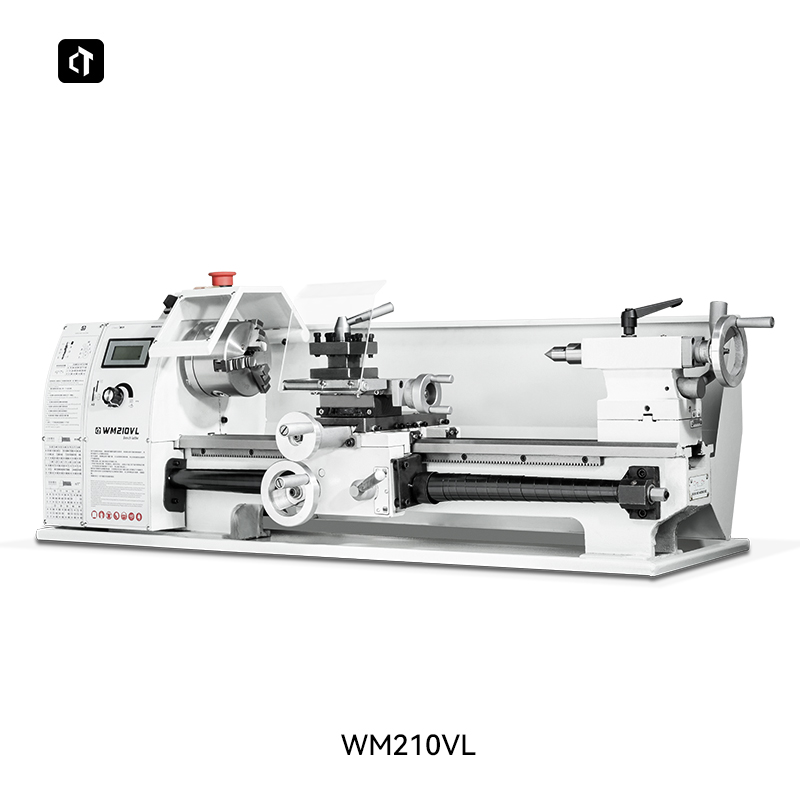

8" x 15" / 19" Household desktop small lathe-WM210V / WM210VL

8" x 15" / 19" Household desktop small lathe-WM210V / WM210VL

The CTMACH WM210V / WM210VL table-top thread cutting lathe is designed for home (hobby) turning of metal or plastic workpieces with a surface shape of a body of revolution.

The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.

Model :
WM210V/WM210VL
Swing over bed :
210
Swing over cross slide :
140
Distance between centers :
400/500
Motor :
750W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1, the whole machine 60kg, covers an area of small, wide application.

2, double V-shaped high-frequency quenching guide rail, wear-resistant, stable, high precision.

3, lead screw protective cover, effectively prevent waste cutting damage to the lead screw, affecting the progress and use

4, CE standard power protection cover, open the protective cover automatic power off, safe and reliable.

5, high strength metal gear, multi belt drive.

6, the spindle speed is stepless speed regulation, adjust the belt position, switch the high and low gear, 50~1250&100~2500r/min, convenient processing of different workpiece needs.

Model	WM210V	WM210VL
Swing over bed	210mm
Swing over cross slide	140mm
Distance between centers	400mm	500mm
Spindle taper	MT3
Spindle bore	21mm
Tailstock ram travel	60mm
Tailstock taper	MT2
Cross slide travel	75mm
Top slide travel	55mm
Metric threads	0.3~3.0mm (14)
Inch threads	10~44T.P.I. (10)
Range of Longitudinal Feed	0.089、0.147、0.198 mm/r
Spindle speed range（Variable）	50~1250 100~2500RPM
Motor power	750W
N.W.	60Kg	70Kg
Package Size	820x400x340mm	920x400x340mm
