7" x 12" Household desktop small lathe-CQ0618

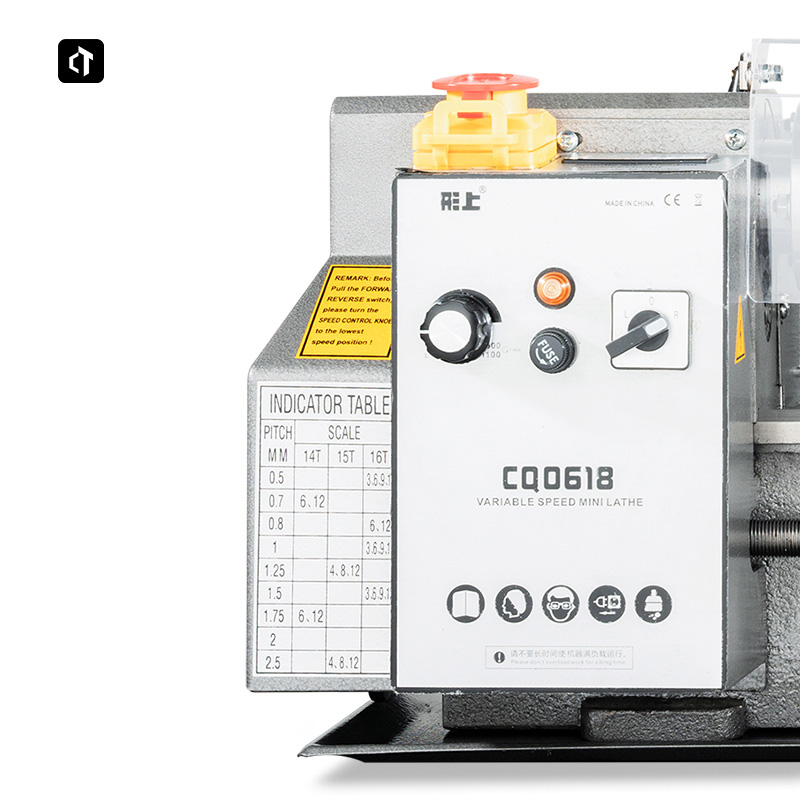

7" x 12" Household desktop small lathe-CQ0618

Common choice for studios and scientific and educational institutions

Better Enlightenment Education in Mechanical Technology

For teaching demonstrations in schools, science and innovation centers and scientific research units,

Suitable for home DIY, model aircraft parts, clock parts processing.

Model :
CQ0618
Swing over bed :
180
Swing over cross slide :
150
Distance between centers :
300
Motor :
400

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1, the whole machine 45kg, covers an area of small, wide application.

2, bed precision grinding, wear-resistant, high precision; High strength nylon gear, low noise.

4, CE standard power protection cover, open the protective cover automatic power off, safe and reliable.

5, the spindle speed adopts stepless speed regulation, adjust the belt position, switch the high and low gear, 50~1100&100~2500r/min, convenient processing of different workpiece needs.

Model	CQ0618
Swing over bed	180mm
Swing over cross slide	150mm
Distance between centers	300mm
Spindle taper	MT3
Spindle bore	20mm
Tailstock ram travel	40mm
Tailstock taper	MT2
Cross slide travel	65mm
Top slide travel	35mm
Metric threads	0.5~2.5mm (9)
Inch threads	12~52T.P.I. (19)
Range of Longitudinal Feed	1
Spindle speeds（Variable）	100~1100RPM & 100~2500RPM
Motor power	400W
N.W.	50KG
Overall dimensions	75x22x30cm
