12" x 29" Bench metal lathe-CT3275

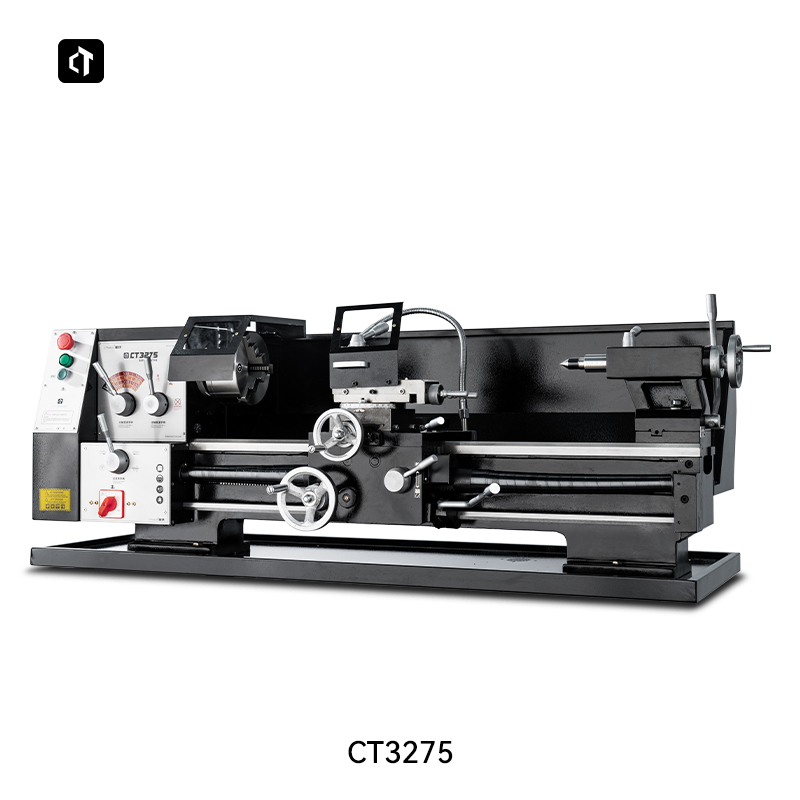

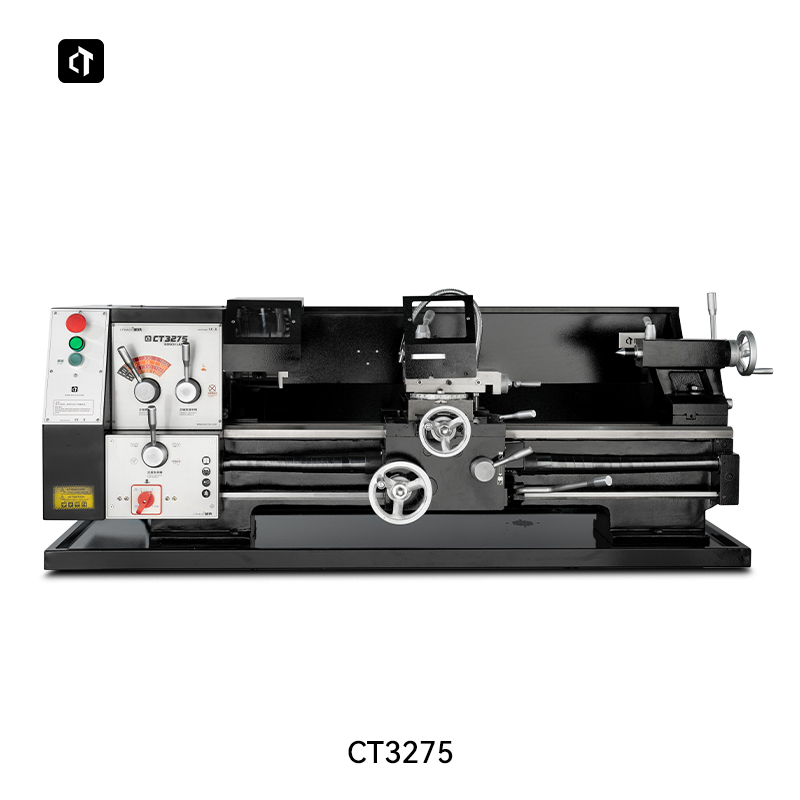

12" x 29" Bench metal lathe-CT3275

The CTMACH CT3275 table-top thread cutting lathe is designed for home (hobby) turning of metal or plastic workpieces with a surface shape of a body of revolution.

The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.

Model :
CT3275
Swing over bed :
320
Swing over cross slide :
210
Distance between centers :
750
Motor :
1500W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

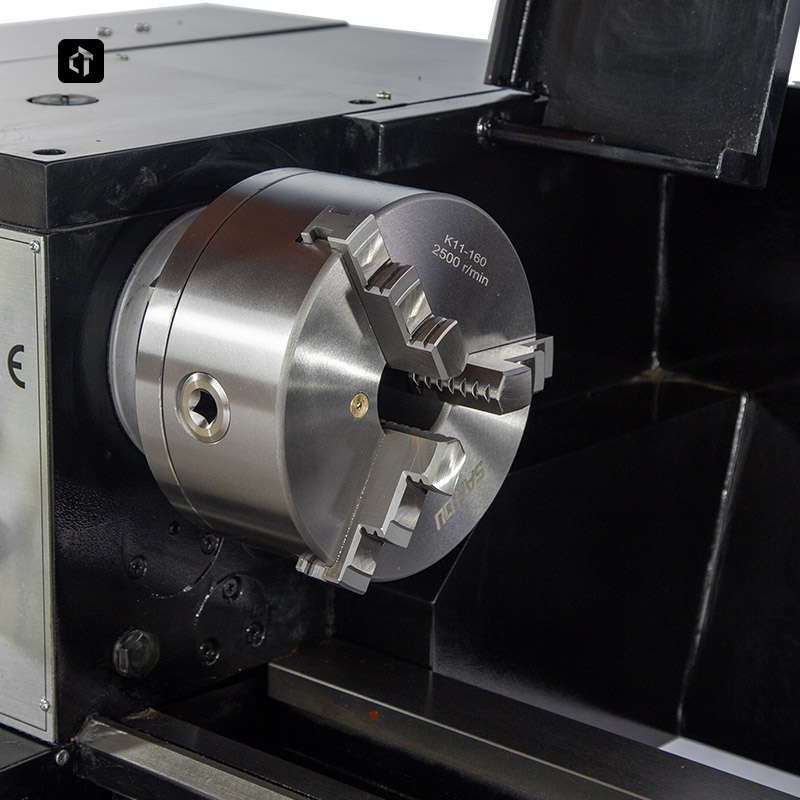

1. High precision spindle. the use of imported SKF bearings, the machine runs more smoothly, longer running time.

2. Transverse and longitudinal automatic cutting, screw positive and negative rotation, can turn positive and negative threads, more convenient turning thread.

3. Replace the belt in different positions, switch high and low speed gear, you can get 12 kinds of speed.

4. Chuck power off protection cover, longitudinal anti-collision knife power off device, lead screw protective cover.

5. 1.5KW High-power spindle AC motor, good performance, high efficiency.

6. The size of the lathe makes it suitable for home workshops, light industry or educational use.

Model	CT3275
Swing over bed	320mm
Swing over cross slide	210mm
Distance between centers	750mm
Spindle taper	MT5
Spindle bore	38mm

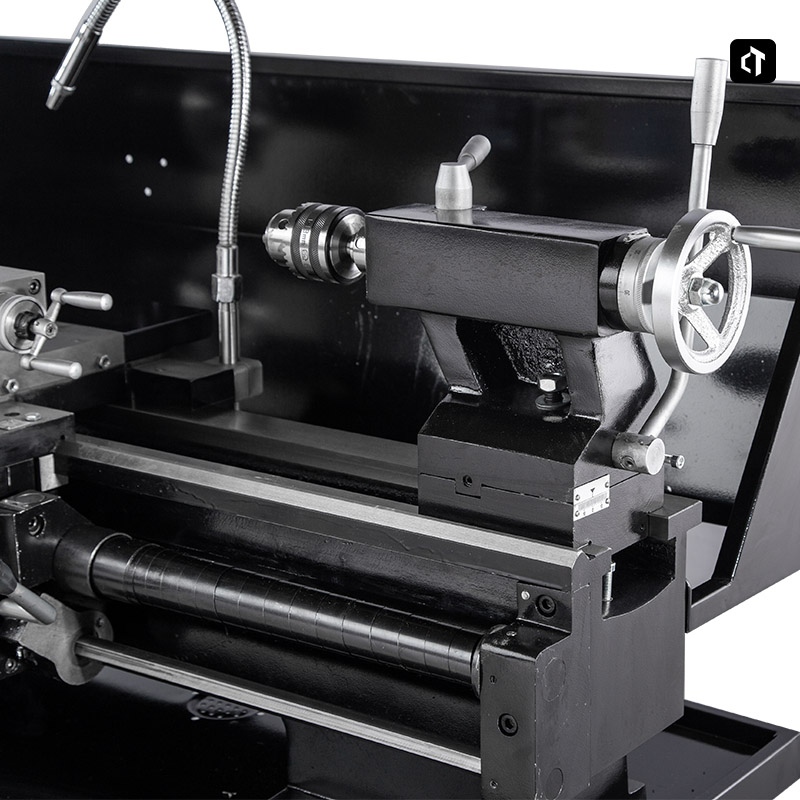

Tailstock ram travel	70mm
Tailstock taper	MT3
Cross slide travel	170mm
Top slide travel	100mm
Metric threads	0.5~4.0mm（17 ）
Inch threads	9~40TPI（20）
Range of Corss Feed	0.025~0.34mm/r（42）
Range of Longitudinal Feed	0.135~1.80mm/r（42）
Spindle speeds	60~1600RPM （12）
Motor power	1.5KW
N.W.	320KG
Overall dimensions	1500x650x580mm
