12" x 23" Bench metal lathe-CTC320

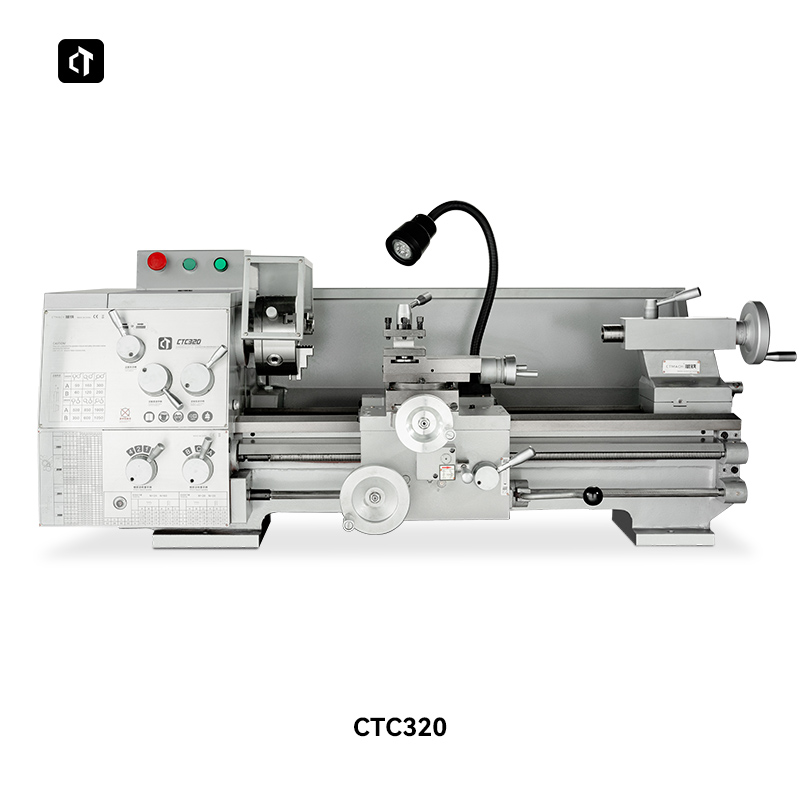

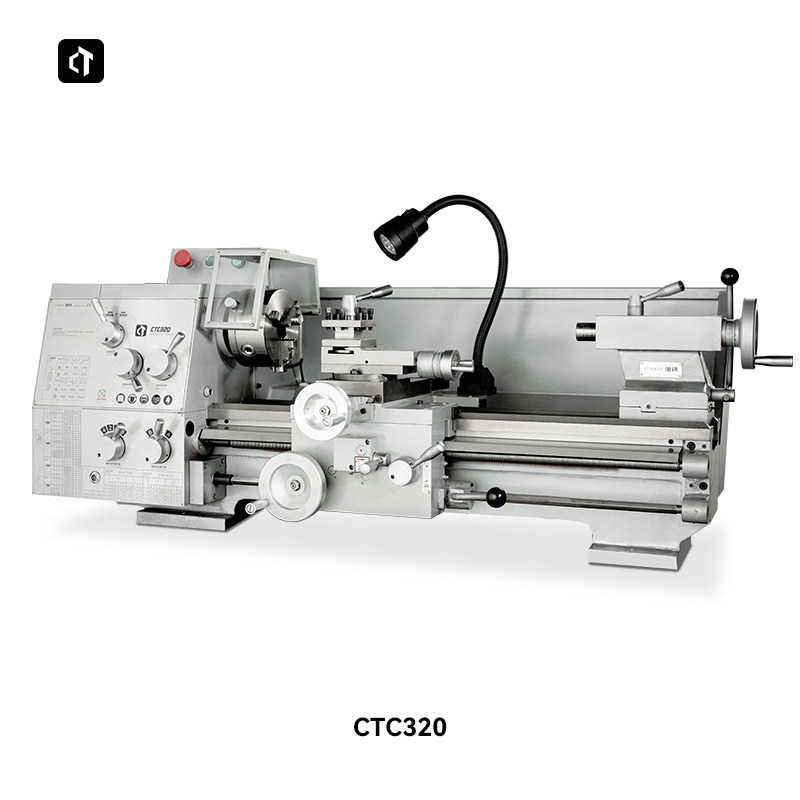

12" x 23" Bench metal lathe-CTC320

The CTMACH CTC320 table-top thread cutting lathe is designed for home (hobby) turning of metal or plastic workpieces with a surface shape of a body of revolution.

The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.

Model :
CTC320
Swing over bed :
320
Swing over cross slide :
200
Distance between centers :
600
Motor :
1500W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1. The spindle box gears are quenched and ground to greatly extend the service life of the gears and reduce noise.

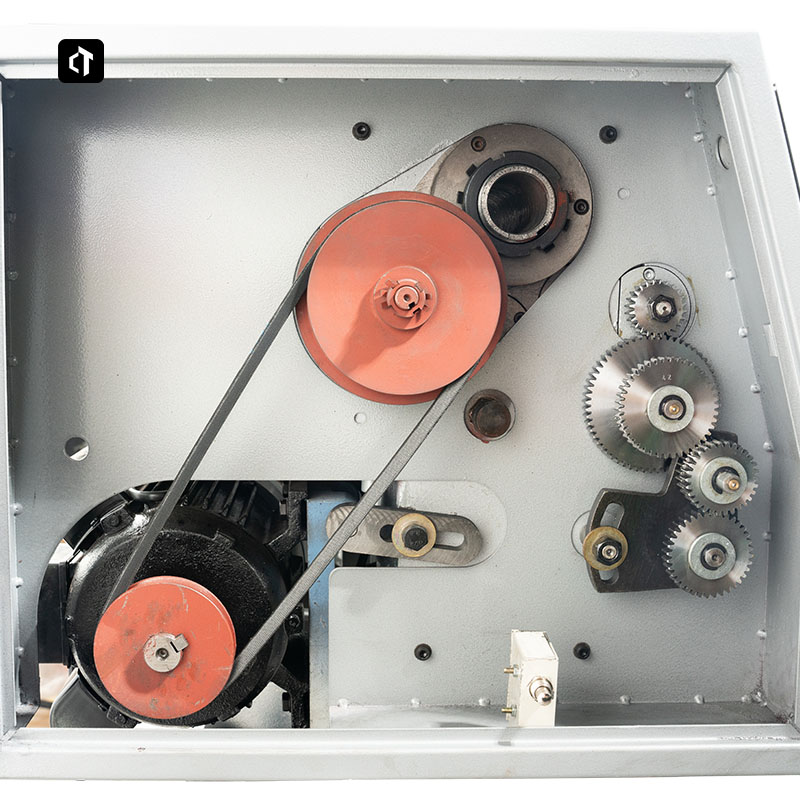

2. Full gear transmission, 12-speed gear transmission.

3. It is equipped with forward and reverse rotation of the screw rod, which can turn left and right hand threads, and can automatically move the tool vertically and horizontally.

4. There is no need to replace the hanging wheel, and it can meet the needs of many different types of tools and various pitches.

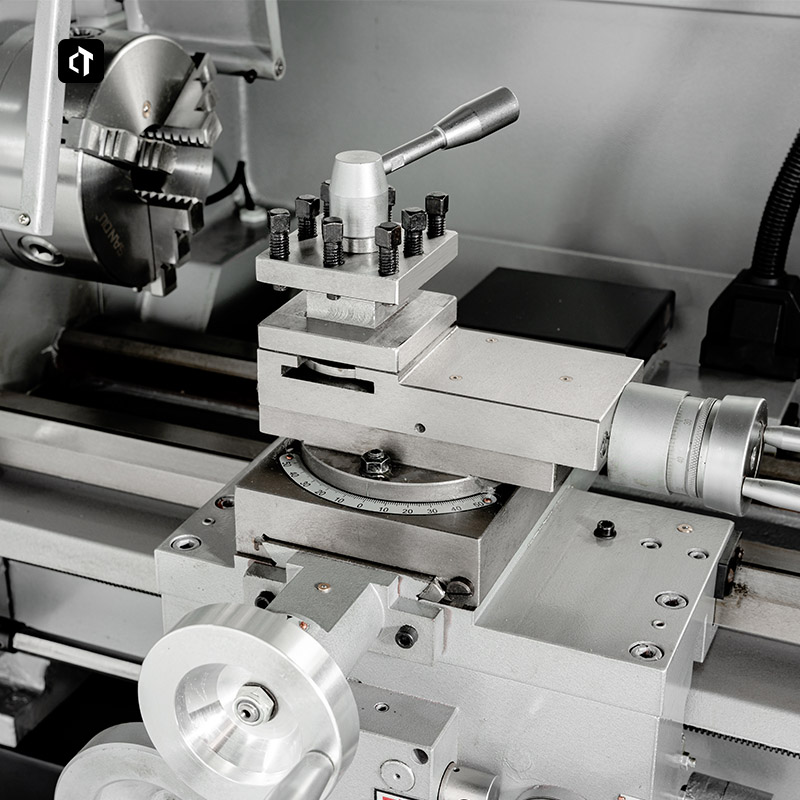

5. The vertical and horizontal feeding adopts an interlocking mechanism, which is safe.

6. The machine tool adopts double mountain guide rails, high-frequency quenching, high precision, good rigidity and good wear resistance.

7. Tapered inserts can adjust the guide rail clearance.

8. Suitable for home workshops, light industry or educational purposes.

MODEL	CTC320
Swing over bed	320mm
Distance between Centres	600mm
Swing over cross slide	200 mm
Spindle bore	38mm
Spindle taper	MT5
Cross slide travel	160㎜
Top slide travel	100㎜
Metric threads	0.20~7mm (22)
Inch threads	2 1/2～48 T.P.I. (45)
Modulus thread	0.20~3.5mm (21)
Diameter pitch thread	8～120 1/n″ (31)
Range of Longitudinal Feed	0.10~1.40mm (24)
Range of Corss Feed	0.045~0.60mm (24)
Tailstock ram travel	80mm
Tailstock taper	MT3
Number of spindle speeds	12
Spindle speeds	60~1600r/mim
Motor	1500W
N.W.	340㎏
Overall dimensions	1370×685×520mm
