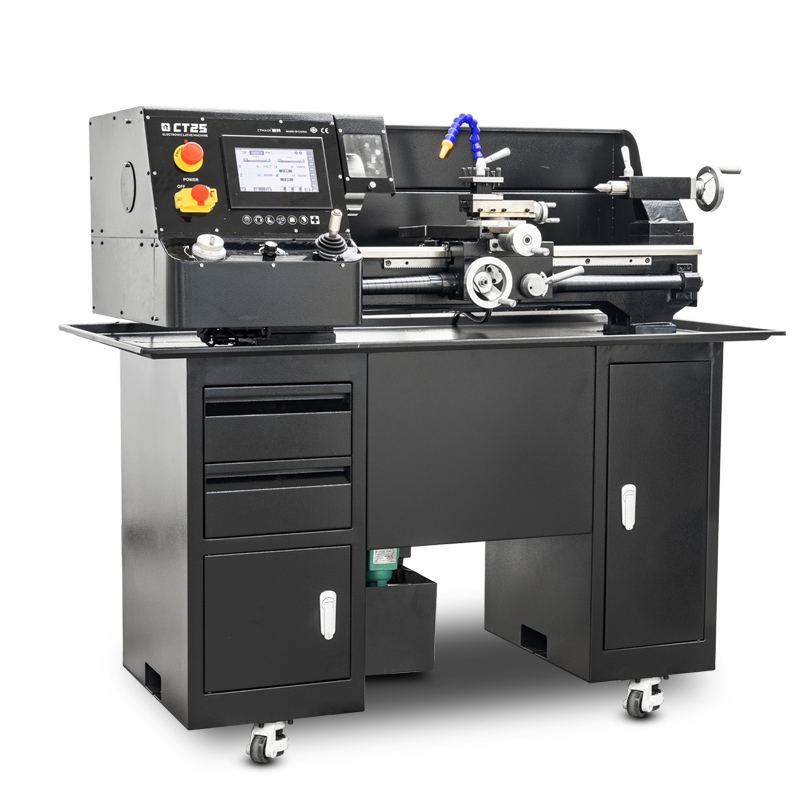

10"×21" Electronic hanging wheel lathe CT25

10"×21" Electronic hanging wheel lathe CT25

Simple CNC full automation, easy and convenient work.
It is used for teaching demonstrations in schools, science and technology innovation centers and scientific research units, suitable for home DIY, aircraft model parts, and watch parts processing.

Model :
CT25
Swing over bed :
250mm
Swing over cross slide :
125mm
Distance between centers :
550mm
Motor :
1500w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

1. Simple CNC full automation, easy and convenient work.

2. The spindle has stepless speed change, you can choose the required speed when the machine is running, the spindle speed range is 50~2000rpm.

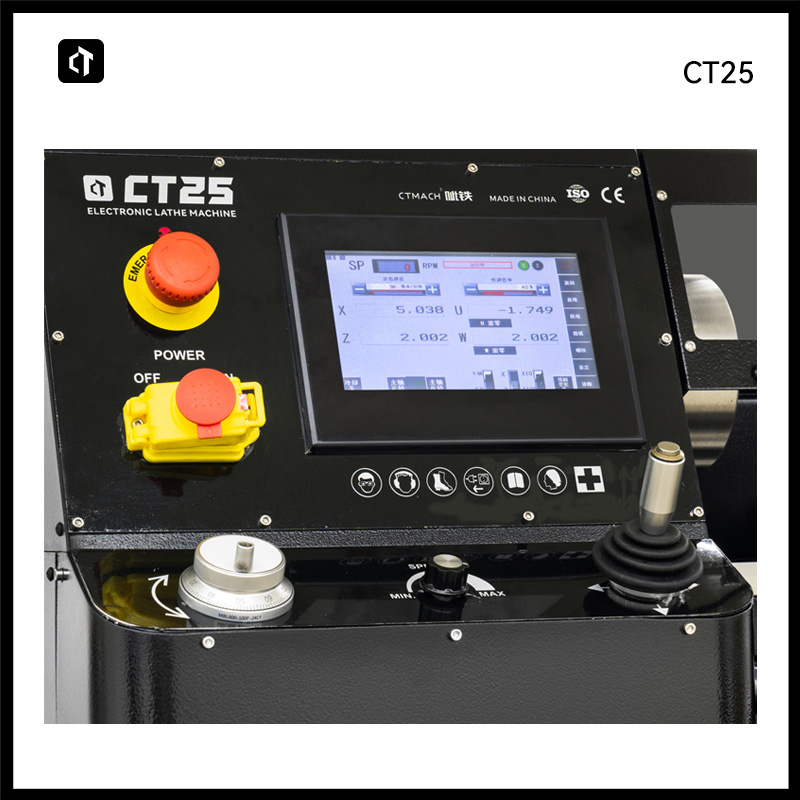

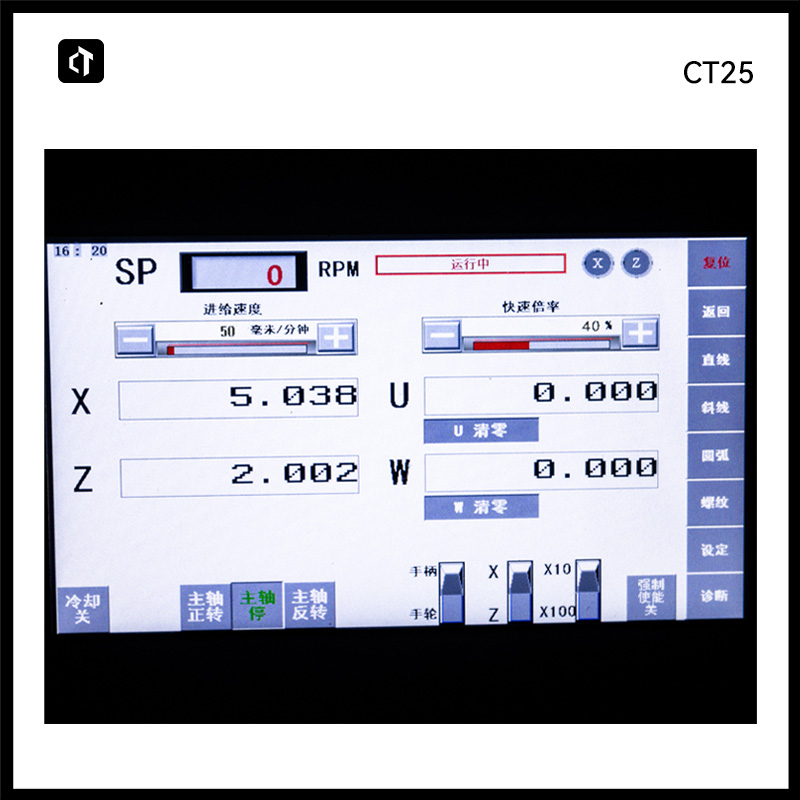

3. Equipped with X/Z axis digital display, the feed stroke can be observed, convenient and fast.

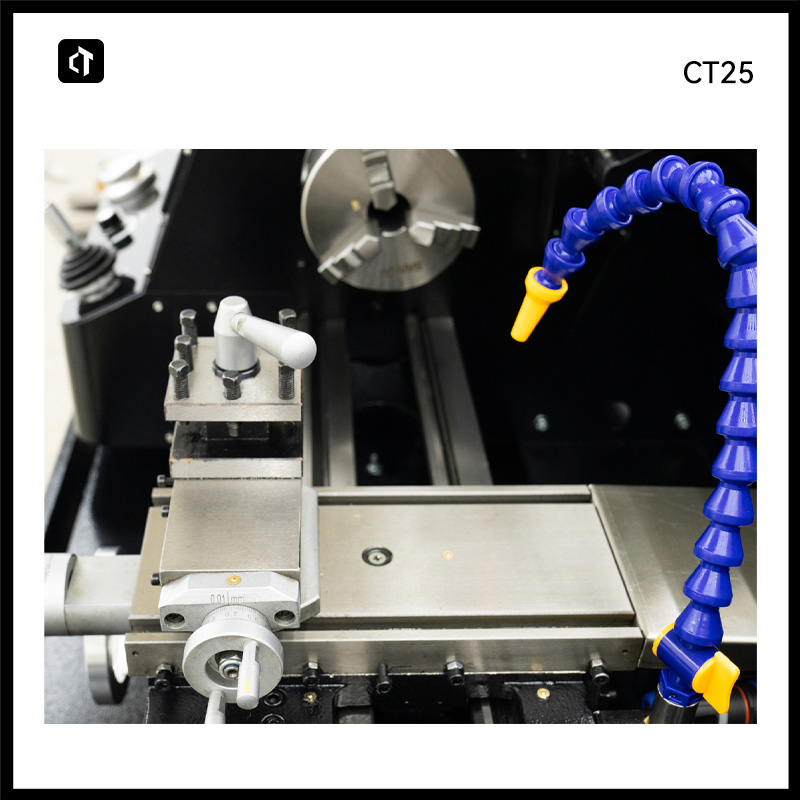

4. Double V-shaped quenching guide rails, stable and high precision.

5. CE safety standard, the gearbox protection cover and the spindle protection cover adopt power-off protection device, and shutdown maintenance is safer.

6. It is used for teaching demonstrations in schools, science and technology innovation centers and scientific research units, suitable for home DIY, aircraft model parts, and watch parts processing.

Model	CT25
Distance between centers	550
Swing over bed	250
Max swing over cross slide	145
Taper of spindle bore	MT4
Spindle bore	26
Number of spindle speed	（Variable Speed）
Range of spindle speed	50~2000 RPM
Range of crossl feeds	0.02~0.4 mm/r
Range of longitudinal feeds	0.02~0.4 mm/r
Range of inch threads	6~80 T.P.I
Range of metric threads	0.25~4 mm
Top slide travel	70 mm
Cross slide travel	105 mm
Tailstock quill travel	60 mm
Taper of tailstock quill	MT2
Main Motor	1.5 Kw
Torque of Z-axis Motor	2.29 N.m
Torque of X-axis Motor	2.29 N.m
Packing size	1670x800x1430 mm

Hot Tags : Metal Turning Lathes Electronic speed-regulating lathe Model Making Lathe Electronic hanging wheel lathe industrial lathe machine Bench lathe
