10" x 27" Bench metal lathe-CTC250/CTC250L

10" x 27" Bench metal lathe-CTC250/CTC250L

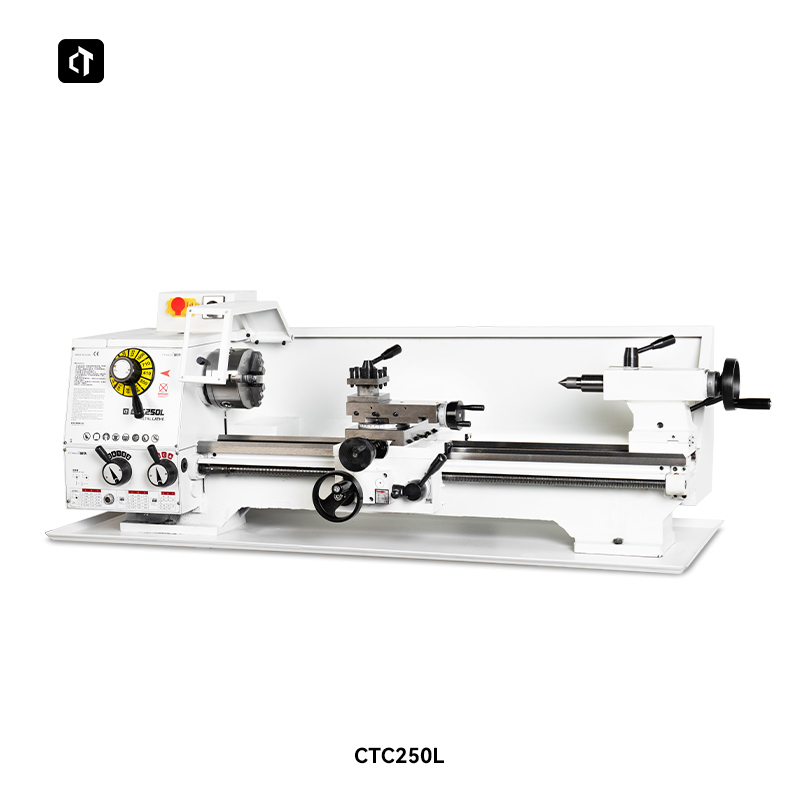

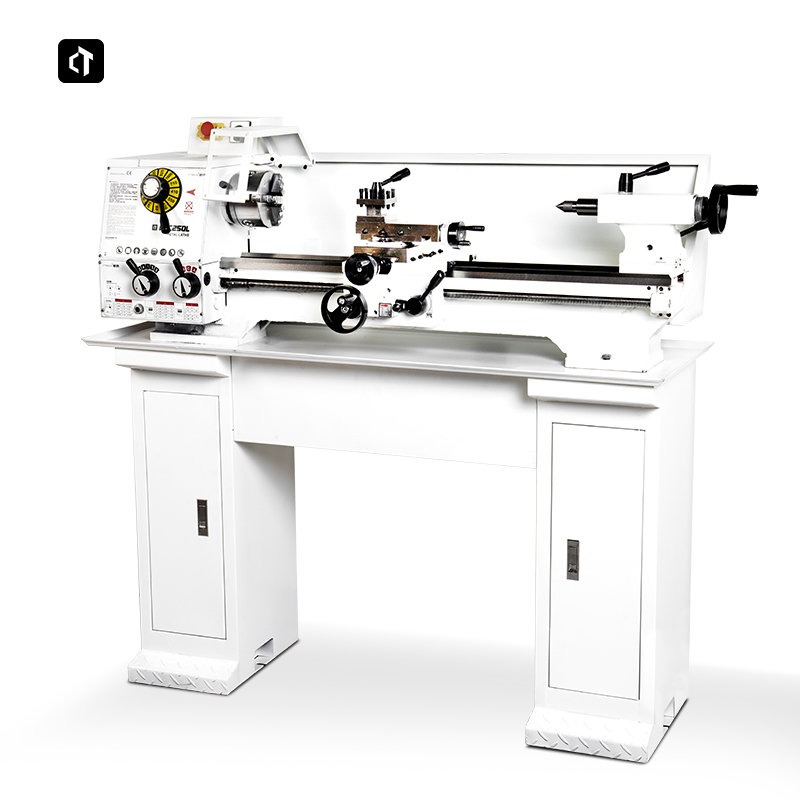

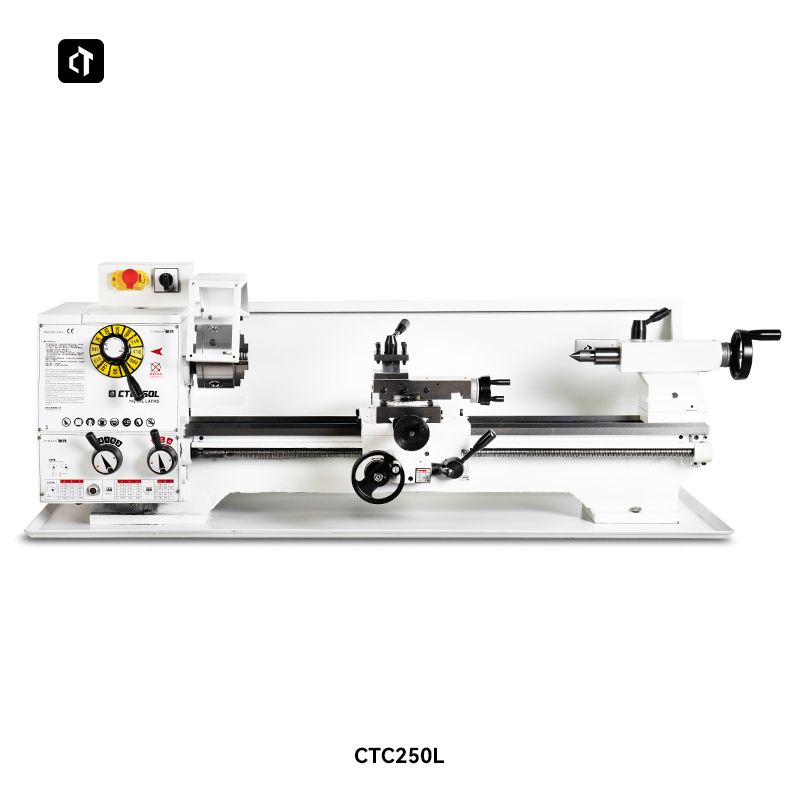

The CTMACH CTC250L table-top thread cutting lathe is designed for home (hobby) turning of metal or plastic workpieces with a surface shape of a body of revolution.

The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.

Model :
CTC250/CTC250L
Swing over bed :
250
Swing over cross slide :
150
Distance between centers :
500/700
Motor :
750w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1. Gear change cycle, strong rigidity, high precision, durable, easy to maintain.

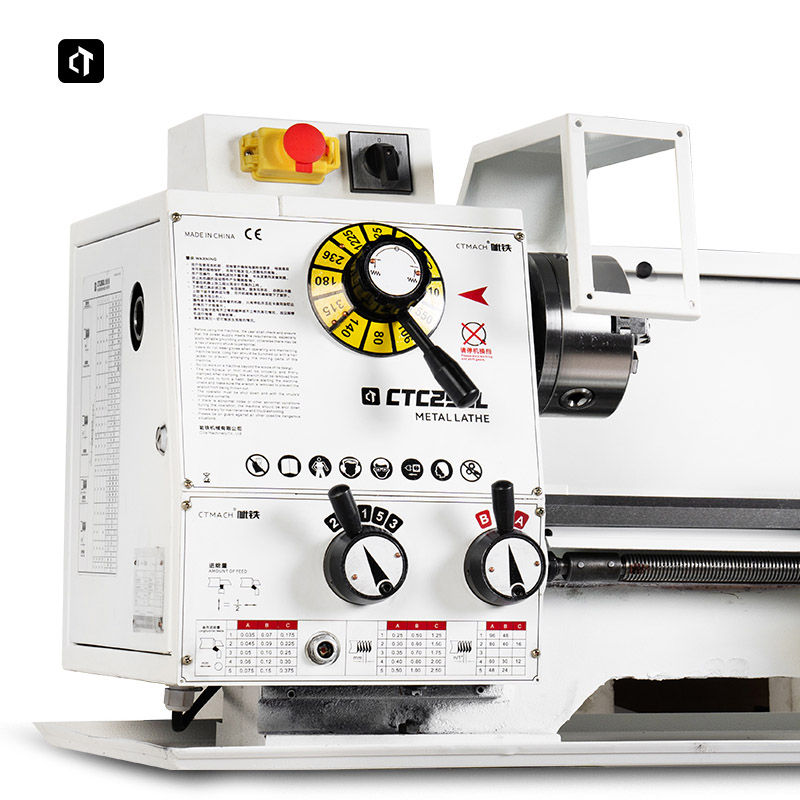

2. Double-sided curved disk spindle speed change mechanism, 12 gear change.

3. Vertical and horizontal automatic feed, screw thread without replacing the hanging wheel, you can turn a variety of threads, convenient and efficient;

4. Double V-shaped hardening guide rail, stable, high precision.

5. Screw half shield, during the processing, effectively avoid waste into the screw, affecting the life of the machine.

6. CE standard power protection cover, open the protective cover automatic power off, safe and reliable.

MODEL	CTC250	CTC250L
Swing over bed	250mm
Swing over cross slide	150mm
Distance between centers	500mm	700mm
Spindle taper	MT4
Spindle bore	26mm
Tailstock ram travel	70mm
Tailstock taper	MT3
Cross slide travel	130mm
Top slide travel	75mm
Metric threads	0.25~2.5mm (15)
Inch threads	12~96TPI (10)
Longitudinal feed	0.035~0.375mm (15)
Lateral feeds	0.015~0.187mm (15)
Number of spindle speeds	12
Spindle speeds	80~1600rpm
Motor power	750w
N.W.	163Kg	185Kg
Overall dimensions	1100x570x485mm	1300x570x485mm
