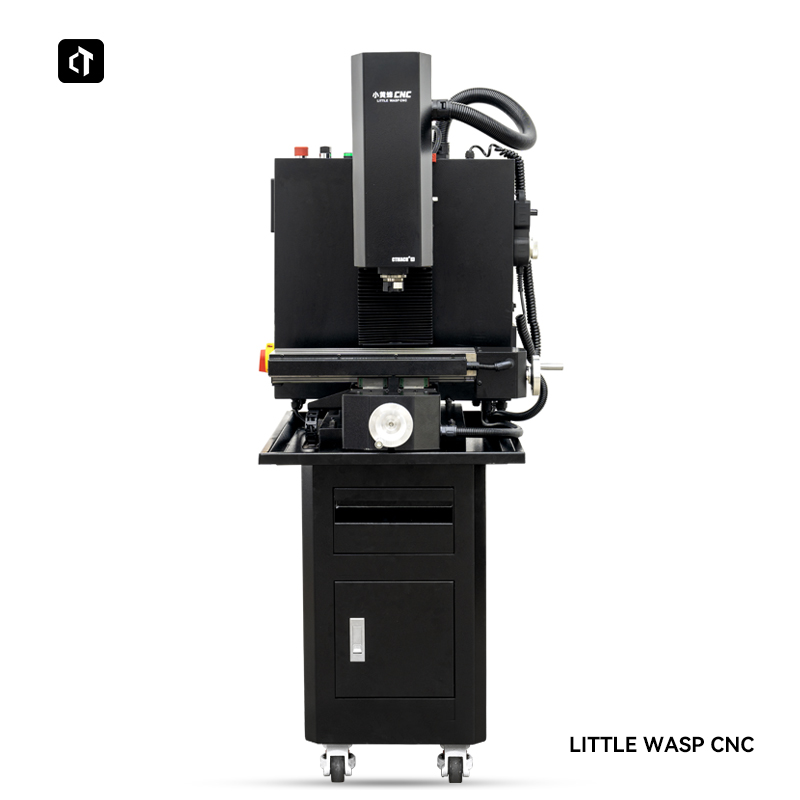

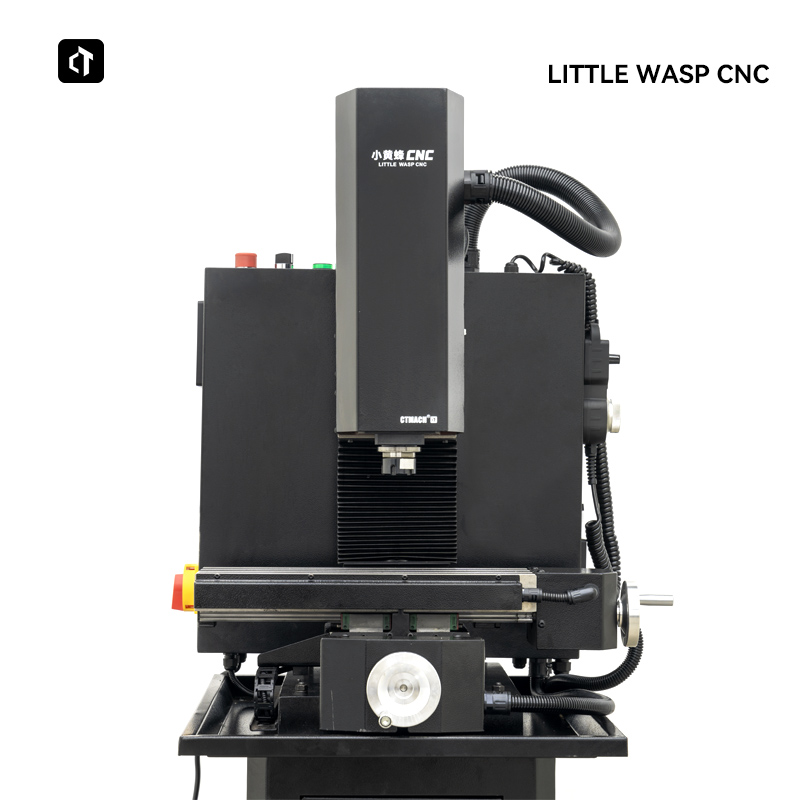

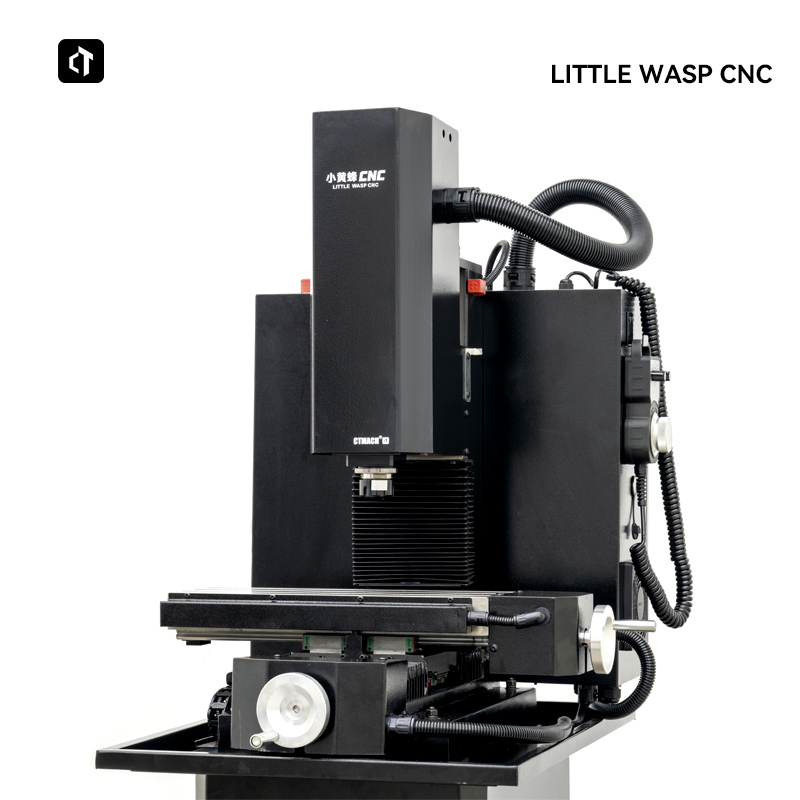

LITTLE WASP CNC - 5"×15" CNC milling machine

LITTLE WASP CNC - 5"×15" CNC milling machine

This machine tool is small in size, light in weight and low in noise. It is suitable for home DIY, processing of model aircraft parts and watch parts, and teaching and demonstration use in schools, science and technology innovation centers and scientific research units;

Model :
LITTLE WASP CNC
Motor :
400W
Max.strokeof X :
220mm
Max.strokeof Y :
120mm
Max.strokeof Z :
200mm
Spindle speed :
3000r/min
Table size :
400*140mm

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

1. This machine tool is small in size, light in weight and low in noise. It is suitable for home DIY, processing of model aircraft parts and watch parts, and teaching and demonstration use in schools, science and technology innovation centers and scientific research units;

2. Configure mach3 simple CNC system, easy to operate.

3. It is suitable for processing various planes, holes or parts with complex plane shapes. It is an important equipment that should be configured in machinery manufacturing, teaching, etc.

4. The main drive of the machine tool uses a brushless DC motor combined with a synchronous belt drive to achieve stepless speed regulation of the spindle. The 400W spindle motor has a spindle speed of 3000RPM.

5. The machine tool tool is relaxed through the ER spring chuck at the end of the spindle.

Model	LITTLE WASP CNC

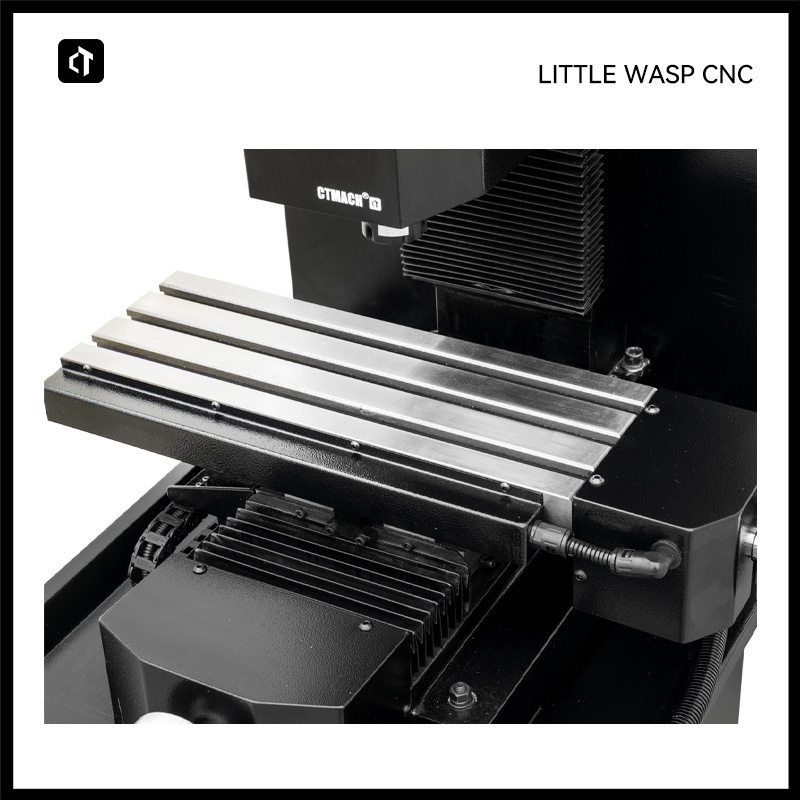

Table size	400x140mm
T-slots size	12x3x24mm
Maximum load	40KG
X spindle travel	220mm
Y spindle travel	120mm
Z spindle travel	200mm
Spindle taper	ER20
Distance from spindle to column guide rail	190mm
Distance from spindle end to table surface	280mm
Spindle speed range	3000r/min
Rated power of spindle motor	400W
Spindle rated torque	1.4N.M
X, Y, Z axis motor torque	XY：2.5N.M；Z：3.2N.M
X, Y, Z axis maximum feed rate	2500
positioning accuracy	±0.02mm
Repeat positioning accuracy	±0.015mm
Net weight	95KG
Overall dimensions	600x760x790mm
