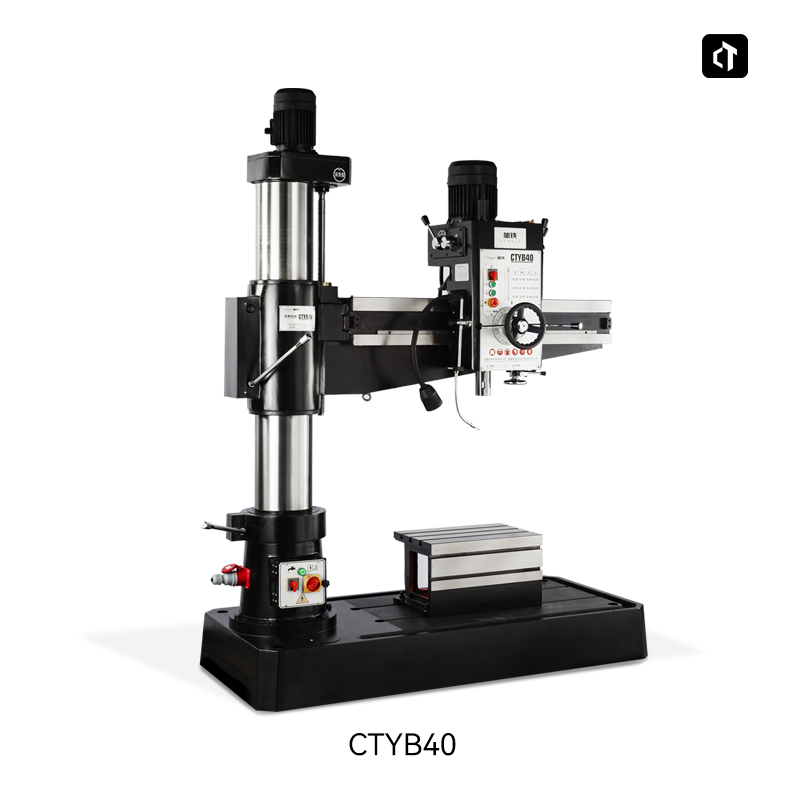

CTYB40 Radial Drilling Machine

CTYB40 Radial Drilling Machine

Large weight and sturdy design ensure stability and vibration-free operation
Cube table provides adjustability and easy fixture of workpiece
Control panel located at the front of the machine for improved convenience
Ground column surface provides easy, precise arm travel
Machine equipped with manual head and column arm limiter
Large speed range for accurate and quick machining

Model :
CTYB40
Motor :
2200W
Drilling Capacity :
40mm
Spindle Travel :
200mm

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Mechanical speed change, automatic feed, travel limit

Equipped with cooling system and work lights

Removable large cast iron workbench

Model	CTYB40
Max. drilling diameter (Casting/Steel)	40mm / 32mm
Spindle taper	MT4
Spindle stroke	200mm
Quill Feed Rates	0.10、0.16、0.25 mm/r
Rotation Angle of rocker arm	±180°
Max. Spindle to Column	360-1300mm
Max. Spindle to Table	260-1050mm
Spindle speed（grade）	32-1220rpm（12）
Main motor power	2.2/1.5KW
Lifting motor power	1.1KW
N.W.	1300KG
Overall dimensions	1760x810x2370mm
